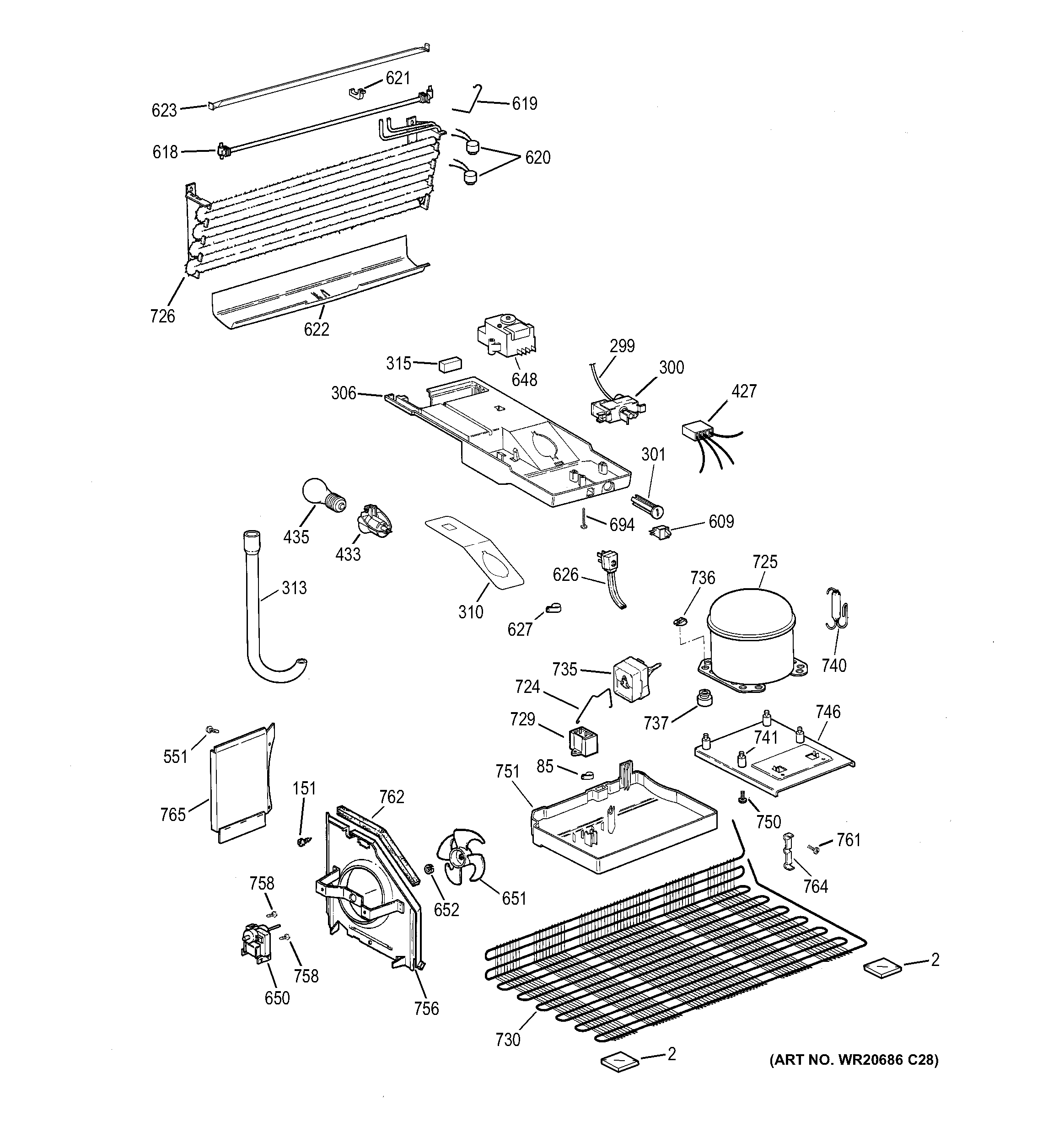

GTH18CCEDRWW UNIT PARTS

GTH18CCEDRWW UNIT PARTS

Written by

in

GTH18CCEDRWW UNIT PARTS

Products

PositionProduct
2GEN WR02X10534
85CLAMP WIRE
151WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
299WR2X8344 GE Refrigerator Vinyl Sleeve
300CONTROL TEMP
301WR02X13355 GE Control Knob
306WR17X12852 GE Refrigerator Control Housing
310GEN WR02X11597
313GEN WR17X10684
315WR01X10996 GE Refrigerator Foam Housing Control
427GEN WR23X10502
433WR02X10591 GE Light Socket and Terminal
435RANGE ONLY 40W 120V APPL BULB
551GEN WD02X0425
609WR23X37285 GE Light Switch
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619GEN WR51X10102
620WR50X10073 GE Refrigerator Defrost Bi-metal Thermostat
621WR02X13678 GE Refrigerator Holder Element Assembly
622GEN WR17X11657
623GEN WR17X13021
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
648WR9X502 GE Refrigerator Defrost Timer
650MOTOR COND FAN
651WR60X10207 GE Refrigerator Fan Blade
652WR02X12149 GE Refrigerator Ring
694GEN WR01X1792
724WR02X11999 GE Refrigerator Clip Retainer
725WR87X20798 GE Refrigerator High Side Assembly
726WR87X28948 GE Refrigerator Evaporator
729WR55X24064 GE Refrigerator Run Capacitor
730GEN WR84X10088
735WR07X10133 GE Refrigerator PTCR Overload Combo
736WR2X8583 GE Refrigerator Clip
737GEN WR02X7238
740WR86X10095 GE Refrigerator Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
746GEN WR17X10195
750WR1X1786 GE Refrigerator Screw
751GEN WR32X10455
756GEN WR17X12210
761WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
762GEN WR14X0313
764WR2X9000 GE Refrigerator Condenser Clip
765GEN WR17X10463
