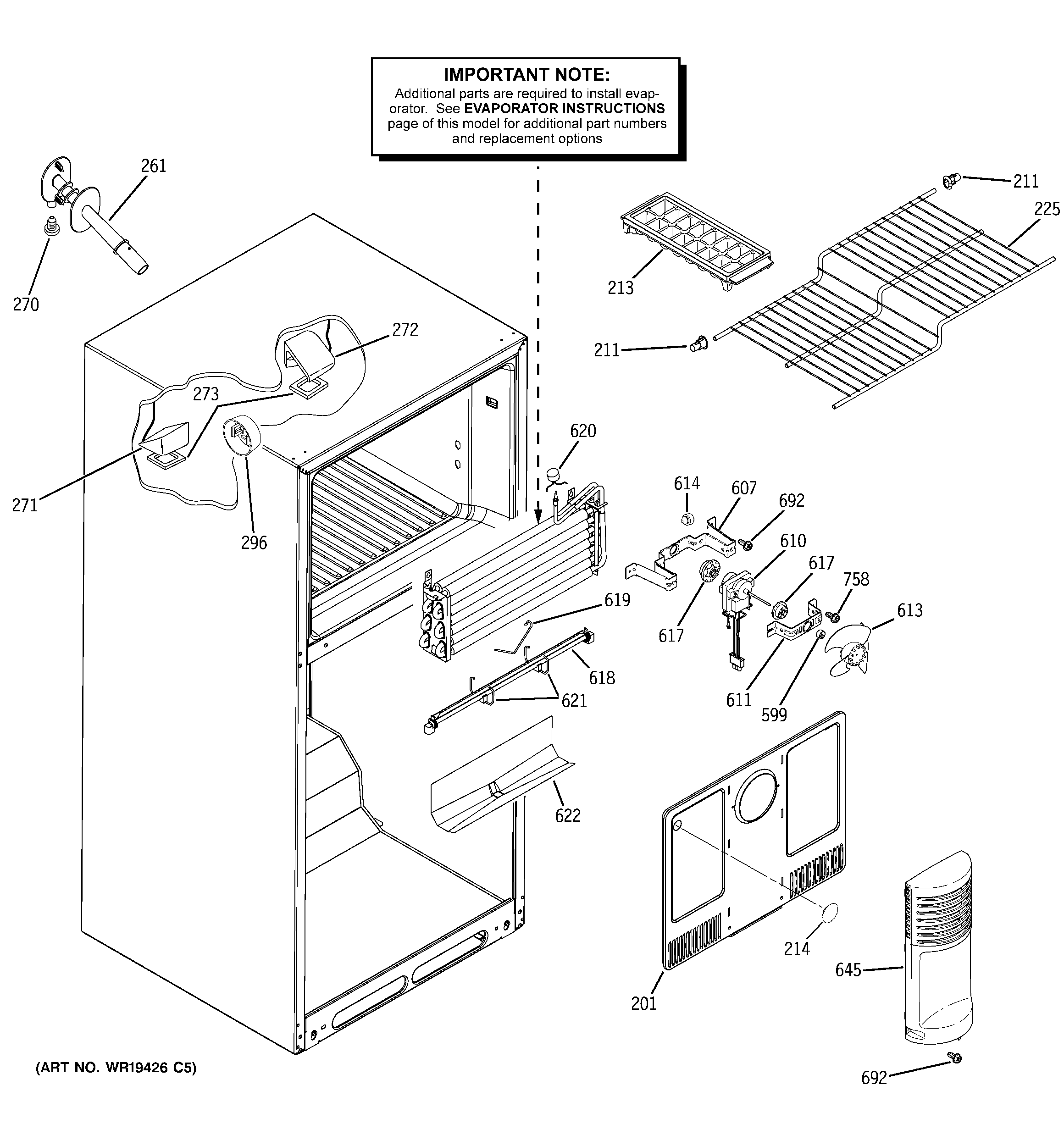

GTH18DBRALBB FREEZER SECTION

GTH18DBRALBB FREEZER SECTION

Written by

in

GTH18DBRALBB FREEZER SECTION

Products

PositionProduct
201GEN WR17X11641
211GEN WR02X7973
213WR30X311 GE Refrigerator Ice Tray
214WR02X11760 GE Refrigerator Plug Button
225GEN WR71X10522
261GEN WR02X10804
270WR2X8247 GE Refrigerator Plug Button
271GEN WR02X10718
272GEN WR02X10719
273GEN WR14X10077
296WR02X11123 GE Refrigerator Cover IM REC
599WR02X12149 GE Refrigerator Ring
607GEN WR02X11582
610WR60X10172 GE Evaporator Fan Motor
610WR60X21887 GE Refrigerator AC DC Motor Evaporator Fan
610GEN WR60X10134
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
611GEN WR02X10762
613BLADE EVAP FAN ASM
614BUMPER
617GROMMET EVAP
617GEN WR02X11585
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
620WR50X10025 GE Refrigerator Defrost Thermostat Terminator
621WR02X10518 GE Refrigerator Element Holder
622WR17X26031 GE Refrigerator Trough Drain
645WR17X11521 GE Refrigerator Tower Bottom
692SCREW
758WD2X323D GE Dishwasher Screw Package
