GTH18DBXALWW FREEZER SECTION

GTH18DBXALWW FREEZER SECTION

Written by

in

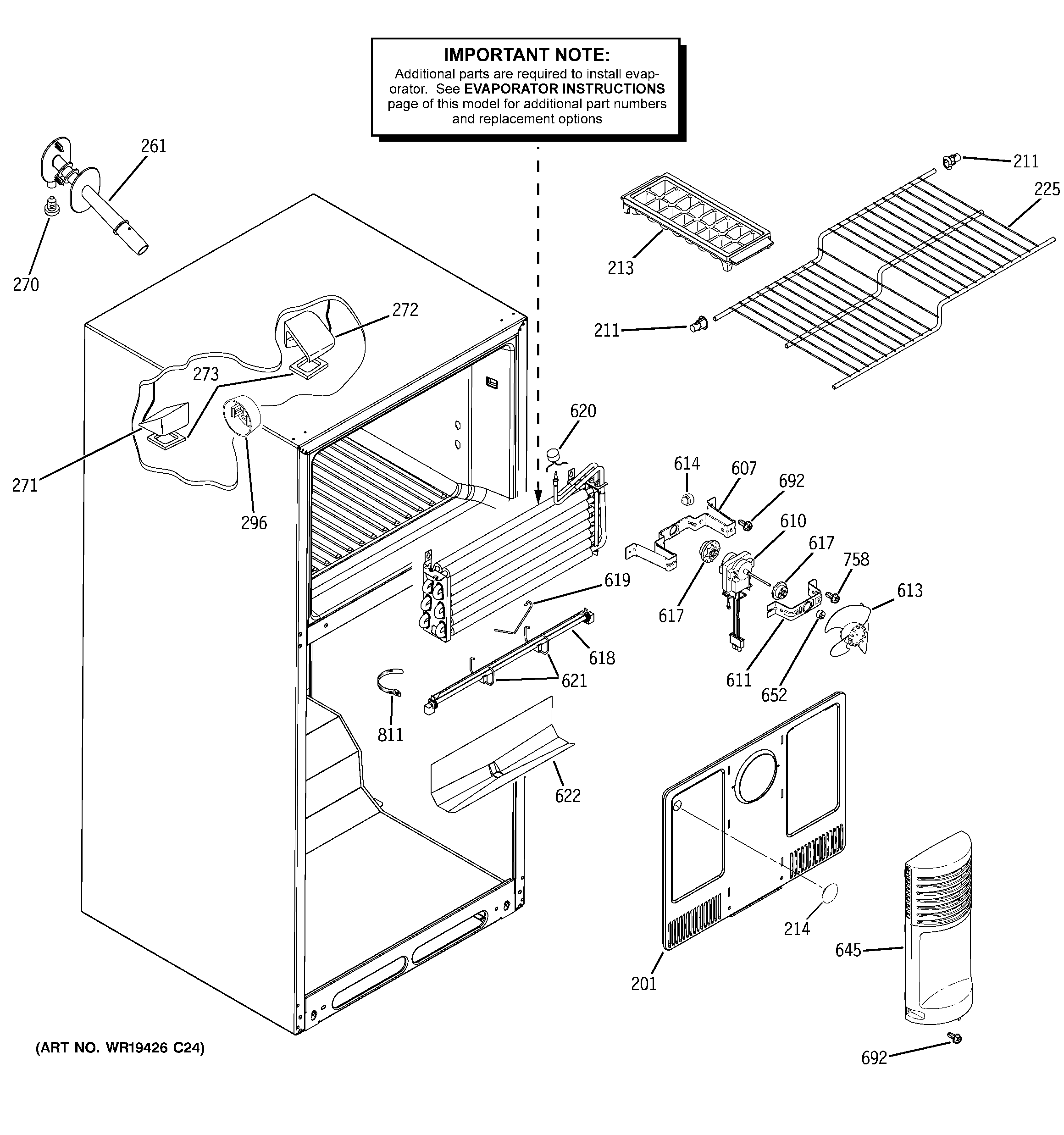

GTH18DBXALWW FREEZER SECTION

Products

PositionProduct
201GEN WR17X11641
211GEN WR02X7973
213WR30X311 GE Refrigerator Ice Tray
214WR02X11760 GE Refrigerator Plug Button
225WR71X10702 GE Refrigerator Shelf Assembly
261GEN WR02X10804
270WR2X8247 GE Refrigerator Plug Button
271GEN WR02X10718
272GEN WR02X10719
273GEN WR14X10077
296WR02X11123 GE Refrigerator Cover IM REC
607GEN WR02X11582
610WR60X21887 GE Refrigerator AC DC Motor Evaporator Fan
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
613BLADE EVAP FAN ASM
614BUMPER
617WR02X12008 GE Refrigerator Evaporator Fan Grommet
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
620WR50X10070 GE Refrigerator Defrost Thermostat
621WR02X10518 GE Refrigerator Element Holder
622WR17X26031 GE Refrigerator Trough Drain
645WR17X11521 GE Refrigerator Tower Bottom
652WR02X12149 GE Refrigerator Ring
692SCREW
758WD2X323D GE Dishwasher Screw Package
811WR02X11607 GE Refrigerator Wire Tie
