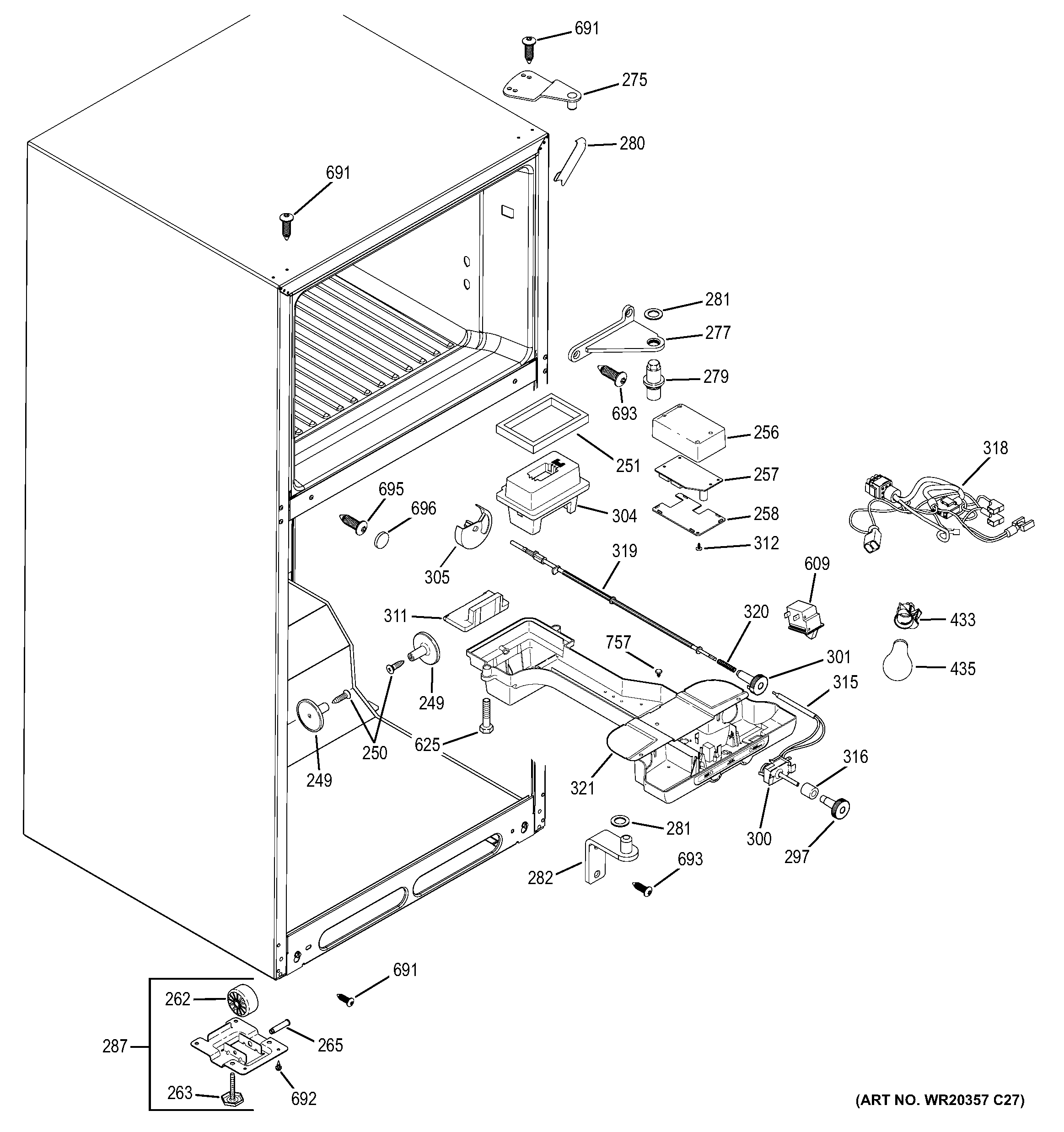

GTH18DCDBRWW FRESH FOOD SECTION

GTH18DCDBRWW FRESH FOOD SECTION

Written by

in

GTH18DCDBRWW FRESH FOOD SECTION

Products

PositionProduct
249WR02X11775 GE Refrigerator Support Vegetable Pan
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
251GEN WR14X10381
256WR09X10126 GE Refrigerator EDC Top Enclosure
257WR55X21623 GE Refrigerator Control Board
258WR09X10125 GE Refrigerator Bottom EDC Enclosure
262GEN WR02X13167
263WR2X7877 GE Refrigerator Slider Adjuster
265GEN WR01X10039
275HINGE TOP & SHIM ASM WH
277GEN WR13X10319
279GEN WR13X0587
280WR02X10749 GE Refrigerator Black Corner Cap
280WR02X10703 GE Refrigerator Corner Cap OC White
281WASHER HINGE
282HINGE BTM & PIN ASM
287GEN WR02X12233
297WR02X11860 GE Refrigerator Thumb Control Knob
300WR09X26874 GE Refrigerator Temperature Control
301GEN WR02X11861
304WR02X13779 GE Refrigerator Nozzle Control Foam
304GEN WR02X10723
305WR02X11583 GE Refrigerator Wheel Damper
311WR02X10709 GE Refrigerator Block Foam Control
312WR01X10149 GE Refrigerator Canoe Clip Fastener
315GEN WR02X11006
316WR02X11632 GE Refrigerator Spacer Shaft Temp Control
318GEN WR23X10625
319WR02X10727 GE Refrigerator Damper Shaft
320GEN WR01X10220
321WR02X11858 GE Refrigerator Reflector Shield
433WR02X30348 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
609WR23X37285 GE Light Switch
691WR1X2138 GE Refrigerator Screw
692SCREW
693WR01X10591 GE Refrigerator Screw 12-24 TT OVT20 .900
695WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
696GEN WR02X10824
696GEN WR02X10845
757GEN WR01X2035
