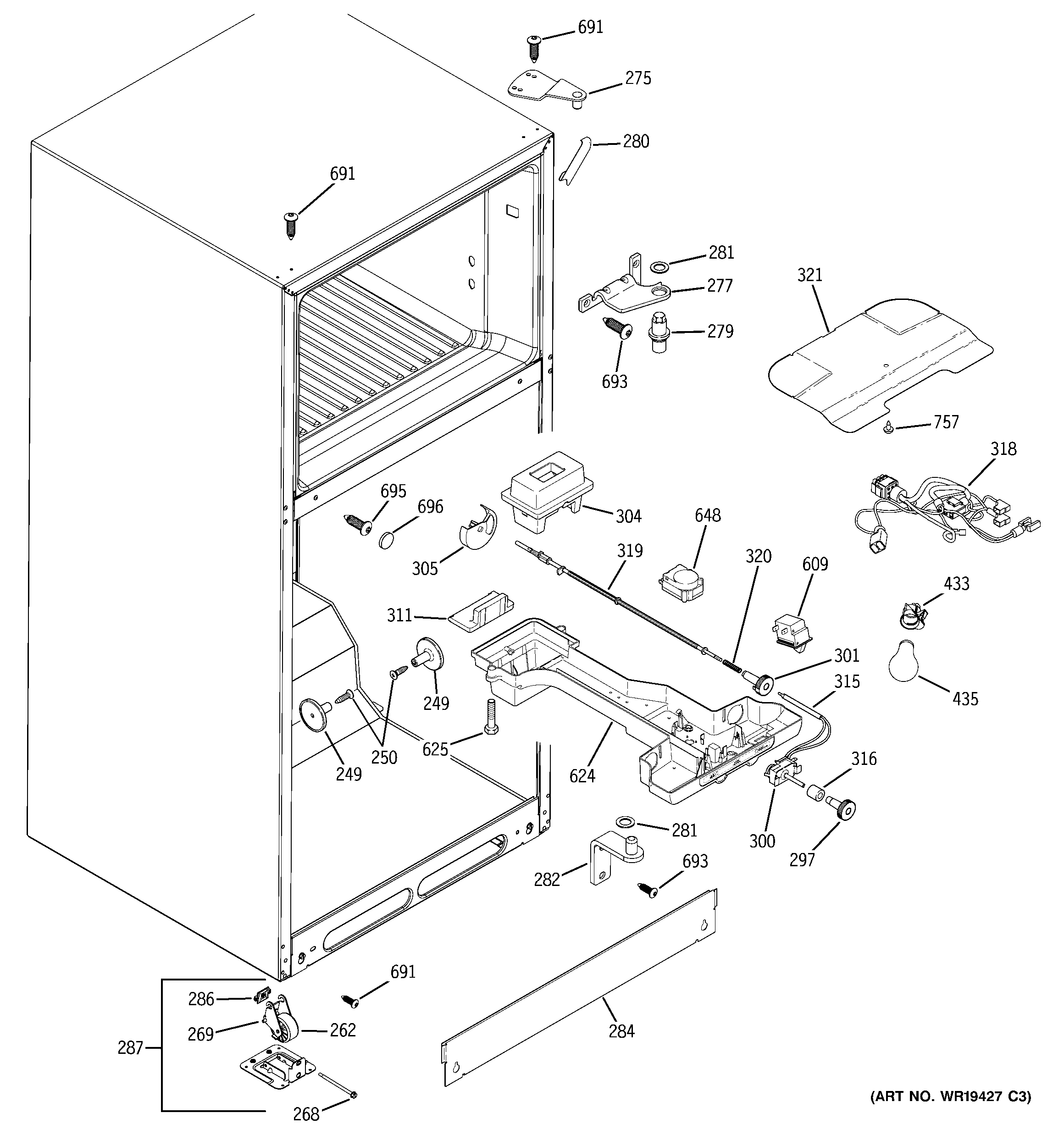

GTH18DCRALBB FRESH FOOD SECTION

GTH18DCRALBB FRESH FOOD SECTION

Written by

in

GTH18DCRALBB FRESH FOOD SECTION

Products

PositionProduct
249WR02X11775 GE Refrigerator Support Vegetable Pan
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
262WR02X10480 GE Refrigerator Mobility Wheel
268GEN WR01X10219
268GEN WR01X10426
268GEN WR01X10424
269GEN WR01X1803
275HINGE TOP & SHIM ASM WH
275GEN WR13X10232
275GEN WR13X10225
277GEN WR13X10317
277HINGE CENTER 18
277GEN WR13X10319
279GEN WR13X0587
280WR02X10703 GE Refrigerator Corner Cap OC White
280WR02X10749 GE Refrigerator Black Corner Cap
280WR02X10700 GE Refrigerator Biscuit Corner Cap
281WASHER HINGE
282GEN WR13X10145
282HINGE BTM & PIN ASM
282GEN WR13X10141
284GEN WR17X11540
284GEN WR17X11536
284GEN WR17X11538
286GEN WR01X1815
287GEN WR02X10722
287GEN WR02X11596
287GEN WR02X11593
297WR02X11860 GE Refrigerator Thumb Control Knob
300WR09X26874 GE Refrigerator Temperature Control
304GEN WR02X10723
305WR02X11583 GE Refrigerator Wheel Damper
311WR02X10709 GE Refrigerator Block Foam Control
315GEN WR02X11006
316WR02X11632 GE Refrigerator Spacer Shaft Temp Control
318GEN WR23X10336
319WR02X10727 GE Refrigerator Damper Shaft
320GEN WR01X10220
321GEN WR02X11584
433WR02X30348 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
609WR23X37285 GE Light Switch
624GEN WR17X11539
625GEN WR01X10425
648DEFROST CONTROL
648WR9X502 GE Refrigerator Defrost Timer
691SCREW 12-24 BK
691WR1X2138 GE Refrigerator Screw
693GEN WR01X2136
693SCREW 12-24 BK
695WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
696GEN WR02X10824
696GEN WR02X10845
696GEN WR02X10839
757GEN WR01X2035
