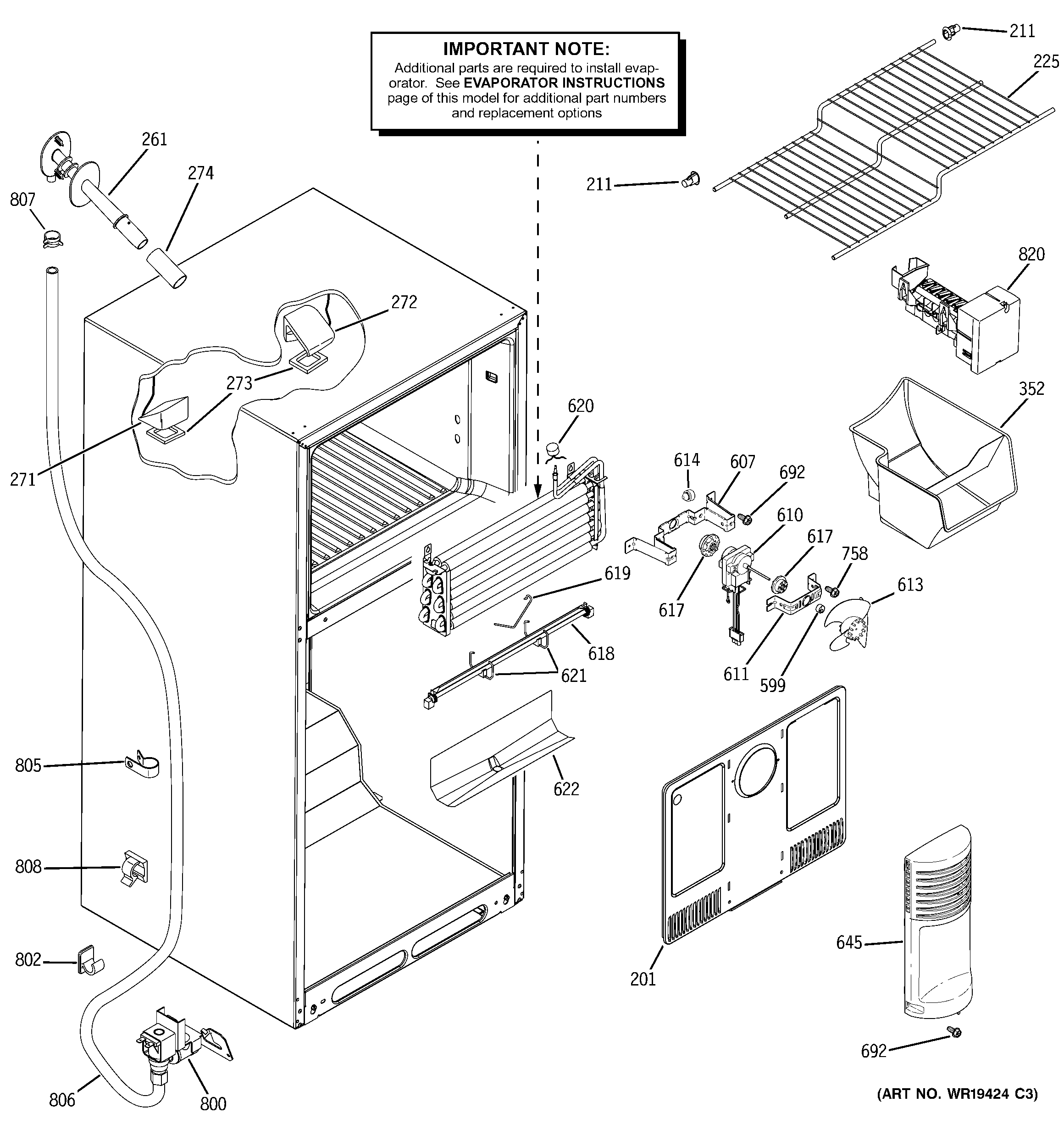

GTH18DCRARBB FREEZER SECTION

GTH18DCRARBB FREEZER SECTION

Written by

in

GTH18DCRARBB FREEZER SECTION

Products

PositionProduct
201GEN WR17X11641
211GEN WR02X7973
225GEN WR71X10522
261GEN WR02X10804
271GEN WR02X10718
272GEN WR02X10719
273GEN WR14X10077
274GEN WR02X10768
352WR30X10154 GE Refrigerator Ice Bucket Assembly
599WR02X12149 GE Refrigerator Ring
607GEN WR02X11582
610WR60X10172 GE Evaporator Fan Motor
610WR60X21887 GE Refrigerator AC DC Motor Evaporator Fan
610GEN WR60X10134
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
611GEN WR02X10762
613BLADE EVAP FAN ASM
614BUMPER
617GEN WR02X11585
617GROMMET EVAP
618WR51X10038 GE Refrigerator Defrost Heater Assembly
619WR51X10052 GE Refrigerator Heater Condition
620WR50X10025 GE Refrigerator Defrost Thermostat Terminator
621WR02X10518 GE Refrigerator Element Holder
622WR17X26031 GE Refrigerator Trough Drain
645WR17X11521 GE Refrigerator Tower Bottom
692SCREW
758WD2X323D GE Dishwasher Screw Package
800WR57X10033 GE Refrigerator Water Inlet Fill Valve
802WR01X10182 GE Refrigerator Clip
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11492 GE Refrigerator Plastic Tube
807WR02X11437 GE Refrigerator Clamp
808WR2X4039 GE Refrigerator Clamp
820WR30X10093 GE Refrigerator Ice Maker
