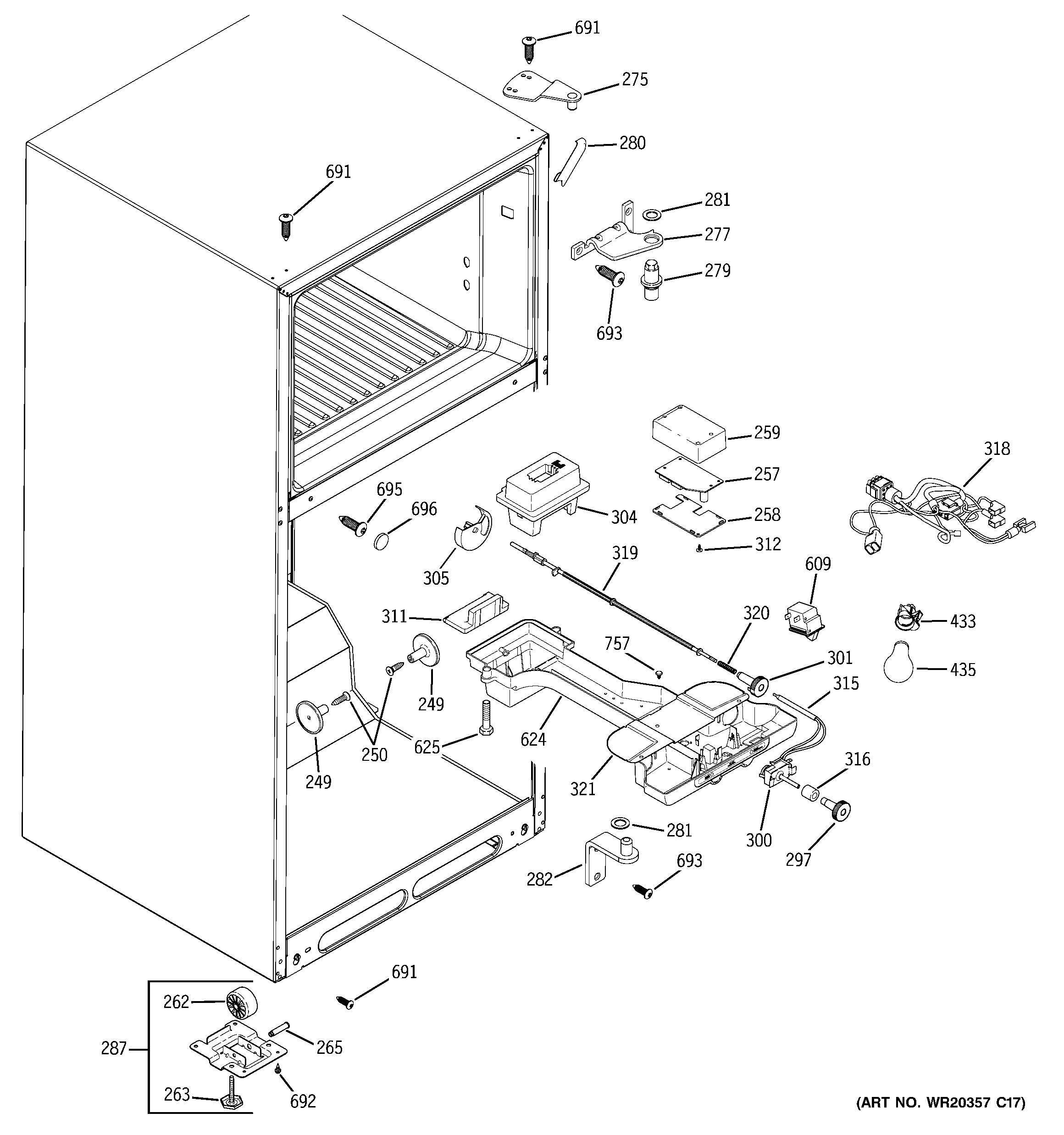

GTH18DCXDRBB FRESH FOOD SECTION

GTH18DCXDRBB FRESH FOOD SECTION

Written by

in

GTH18DCXDRBB FRESH FOOD SECTION

Products

PositionProduct
249WR02X11775 GE Refrigerator Support Vegetable Pan
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
257WR55X21623 GE Refrigerator Control Board
258WR09X10125 GE Refrigerator Bottom EDC Enclosure
259WR09X10126 GE Refrigerator EDC Top Enclosure
262GEN WR02X13167
263WR2X7877 GE Refrigerator Slider Adjuster
265GEN WR01X10039
275GEN WR13X10232
275HINGE TOP & SHIM ASM WH
277GEN WR13X10319
277GEN WR13X10317
279GEN WR13X0587
280WR02X10703 GE Refrigerator Corner Cap OC White
280WR02X10749 GE Refrigerator Black Corner Cap
281WASHER HINGE
282GEN WR13X10145
282HINGE BTM & PIN ASM
287GEN WR02X12233
297WR02X11860 GE Refrigerator Thumb Control Knob
300WR09X26874 GE Refrigerator Temperature Control
301GEN WR02X11861
304GEN WR02X10723
305WR02X11583 GE Refrigerator Wheel Damper
311WR02X10709 GE Refrigerator Block Foam Control
312WR01X10149 GE Refrigerator Canoe Clip Fastener
315GEN WR02X11006
316WR02X11632 GE Refrigerator Spacer Shaft Temp Control
318GEN WR23X10625
319WR02X10727 GE Refrigerator Damper Shaft
320GEN WR01X10220
321WR02X11858 GE Refrigerator Reflector Shield
433WR02X30348 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
609WR23X37285 GE Light Switch
624GEN WR17X12622
625GEN WR01X10425
691WR1X2138 GE Refrigerator Screw
691SCR 12-24TT BHT20 .700 S
692SCREW
693GEN WR01X2136
693SCREW 12-24 BK
695WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
696GEN WR02X10845
696GEN WR02X10824
757GEN WR01X2035
