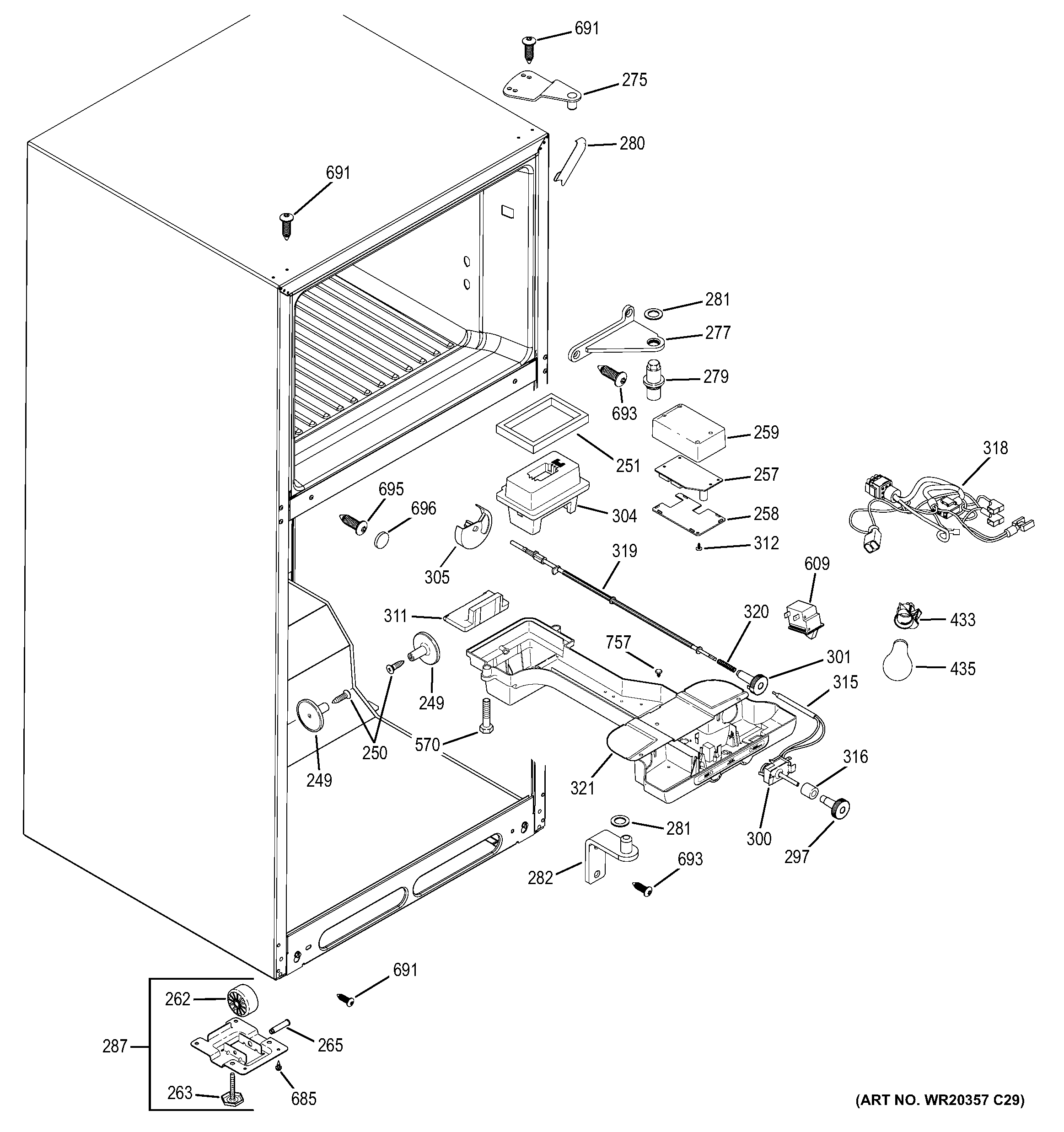

GTH18ECELRBB FRESH FOOD SECTION

GTH18ECELRBB FRESH FOOD SECTION

Written by

in

GTH18ECELRBB FRESH FOOD SECTION

Products

PositionProduct
249WR02X11775 GE Refrigerator Support Vegetable Pan
250WR01X10634 GE Refrigerator Screw 8-18 AB 13/4 S HXW
251WR14X10292 GE Refrigerator Gasket Nozzle Control
257WR55X21623 GE Refrigerator Control Board
258WR09X10125 GE Refrigerator Bottom EDC Enclosure
259WR09X10126 GE Refrigerator EDC Top Enclosure
262GEN WR02X13167
263WR2X7877 GE Refrigerator Slider Adjuster
265GEN WR01X10039
275GEN WR13X10232
277GEN WR13X10317
279GEN WR13X0587
280WR02X10749 GE Refrigerator Black Corner Cap
281WASHER HINGE
282GEN WR13X10145
287GEN WR02X12233
297WR02X11860 GE Refrigerator Thumb Control Knob
300WR09X26874 GE Refrigerator Temperature Control
301GEN WR02X11861
304WR02X13779 GE Refrigerator Nozzle Control Foam
305WR02X11583 GE Refrigerator Wheel Damper
311WR02X10709 GE Refrigerator Block Foam Control
312WR01X10149 GE Refrigerator Canoe Clip Fastener
315GEN WR02X11006
316WR02X11632 GE Refrigerator Spacer Shaft Temp Control
318GEN WR23X10625
319WR02X10727 GE Refrigerator Damper Shaft
320SPRING KNOB
321WR02X11858 GE Refrigerator Reflector Shield
433WR02X30348 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
609WR23X37285 GE Light Switch
685WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
691SCR 12-24TT BHT20 .700 S
693WR01X10591 GE Refrigerator Screw 12-24 TT OVT20 .900
695WR01X26527 GE Refrigerator Screw 12-24 TT PNPSD .785
696GEN WR02X10845
757GEN WR01X2035
