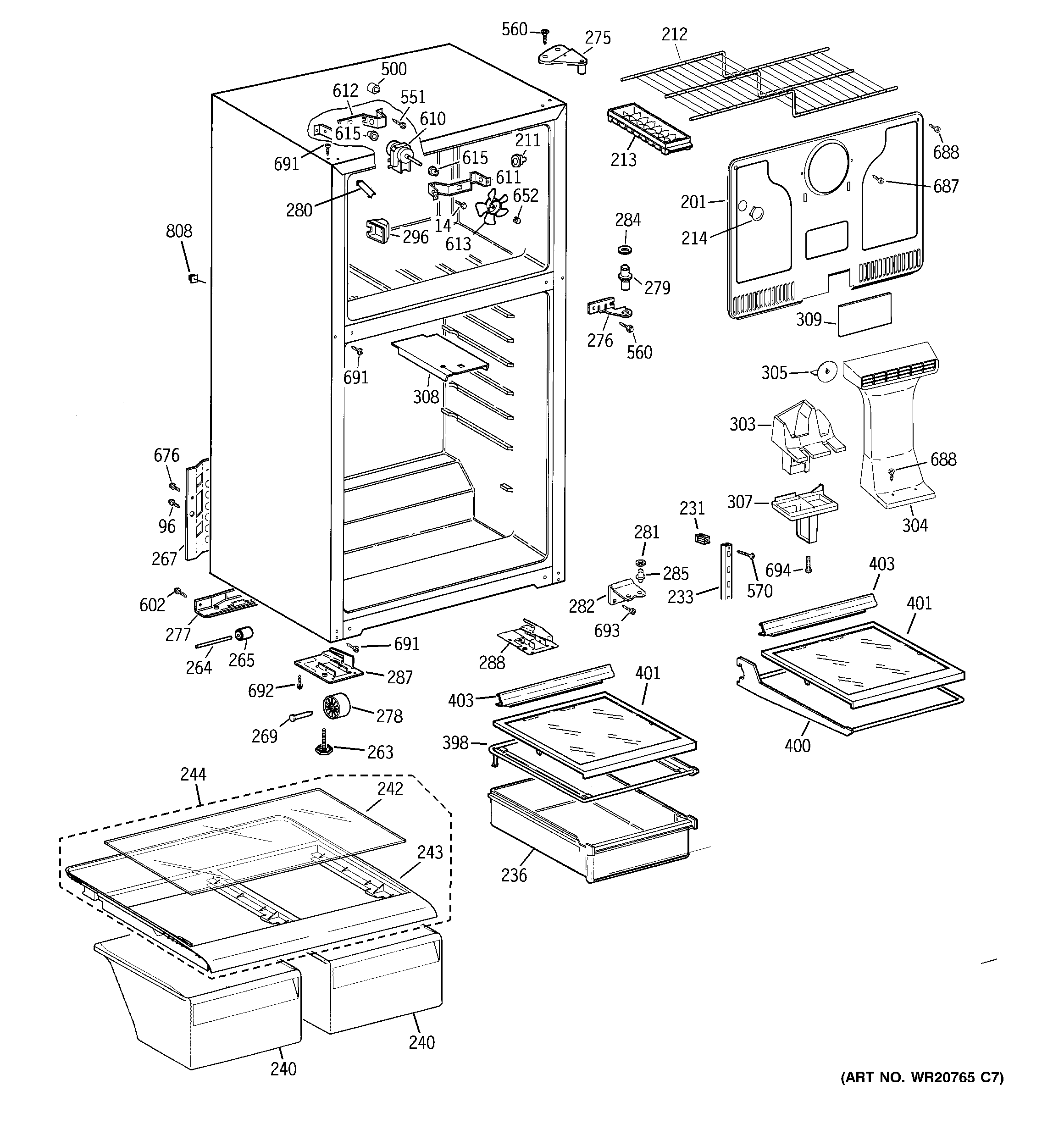

GTH18LCD4RWW CABINET

GTH18LCD4RWW CABINET

Written by

in

GTH18LCD4RWW CABINET

Products

PositionProduct
14WR01X10860 GE Refrigerator Screw 8-32 TT HXW 3/8 S
14GEN WR01X10594
96GEN WR01X2009
201GEN WR17X11887
211WR2X8429 GE Refrigerator Support
212WR71X2086 GE Refrigerator Freezer Shelf Assembly
214PLUG BUTTON INSERT
214PLUG BUTTON INSERT
231GEN WR02X12762
233GEN WR72X0142
236WR32X1448 GE Refrigerator Meat Pan
240WR32X10479 GE Refrigerator Pan Veg Humidity
243WR17X11662 GE Refrigerator Vegetable Pan Cover
244WR32X10854 GE Refrigerator Glass Shelf
263WR2X7877 GE Refrigerator Slider Adjuster
264GEN WR02X8214
265GEN WR02X8245
267GEN WR82X10112
269GEN WR02X12267
275GEN WR13X10326
276GEN WR13X10680
276GEN WR13X10407
276GEN WR13X10408
277GEN WR17X3188
278WHEEL MOBILITY FRT
279GEN WR02X8232
280WR02X10703 GE Refrigerator Corner Cap OC White
280WR02X10749 GE Refrigerator Black Corner Cap
281WASHER HINGE
282GEN WR13X10899
282HINGE BOTTOM
284WR1X1794 GE Refrigerator Door Spacer
285PIN HINGE BOTTOM
287GEN WR02X8709
288GEN WR02X8708
303WR02X20092 GE Refrigerator Foam Duct
304WR17X11891 GE Refrigerator Air Duct E04
305GEN WR02X12018
307WR02X11793 GE Refrigerator Air Diffuser
308GEN WR02X8428
309GEN WR02X12020
398GEN WR71X10088
400GEN WR71X10089
401WR32X10580 GE Refrigerator Glass Shelf
403GEN WR32X10859
500BUMPER
551WR01X10789 GE Refrigerator Stainless Steel Screw 8-18 RNDW 5/8
560GEN WR01X1249
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
610WR60X31522 GE Refrigerator Evaporator Fan Motor
611WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
611WR21X30013 GE Refrigerator Mounting Bracket
612WR21X30022 GE Refrigerator Mounting Bracket
613WR60X10204 GE Refrigerator Evaporator Fan Blade
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
676WD2X5166 GE Dishwasher Screw
687WR01X10589 GE Refrigerator Screw 8-15 AB IHXW 1/2"
688WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
691SCREW 12-24
692WR01X10593 GE Refrigerator Screw 8-18 AB IHXW 3/4 S
693WR01X10591 GE Refrigerator Screw 12-24 TT OVT20 .900
694GEN WR01X1792
