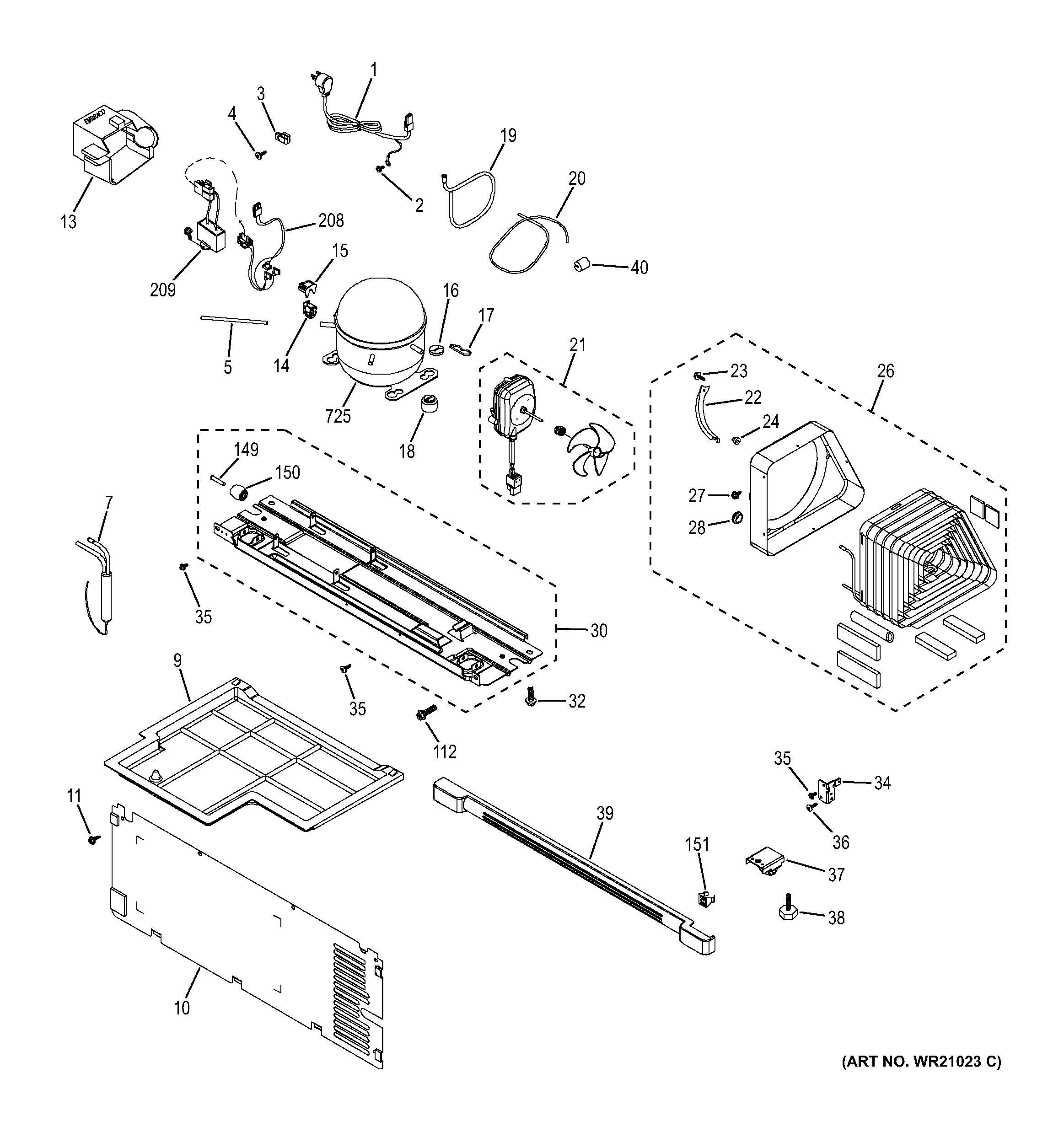

GTH21GCEBBB UNIT PARTS

Products

Position	Product
1	POWER CORD ASM
2	SCREW MACHINE
3	FIXTURE POWER CORD
4	SCREW TAPPING
5	PIPE SVC
7	DRYER
9	CASE VAPORI
10	GRILLE
11	TAPPING SCREW
13	COVER RELAY(EMBRACO)
14	RELAY STARTING
15	RELAY OL
16	SPECIAL WASHER COMP
17	SPRING WASHER COMP
18	ABSORBER COMP
19	PIPE SUC CONN
20	PIPE CONN DEL
21	CONDENSER FAN MOTOR
22	FRAME MOTOR C
23	WR01X10707 GE Special C Motor Bolt
24	ABSORBER C FAN MOTOR
26	CONDENSOR ASM
27	SPECIAL WICON BOLT
28	BUSHING PIPE
30	BASE COMP SAS
32	SPECIAL BOLT
34	BRACKET VALVE
35	SCREW
36	TAPPING SCREW
37	CASTER FZ ASM
38	FOOT ADJUST ASM
39	WR32X10635 GE Refrigerator Cover CAB Bracket Assembly
40	ABSORBER PIPE B
112	SPECIAL BOLT
149	SHAFT CASTR
150	WR02X12541 GE Refrigerator Caster
151	SPRING CAB BRKT COVR
208	HARNESS P RELAY ASM
209	RUNNING CAPACITOR
725	WR87X20798 GE Refrigerator High Side Assembly
