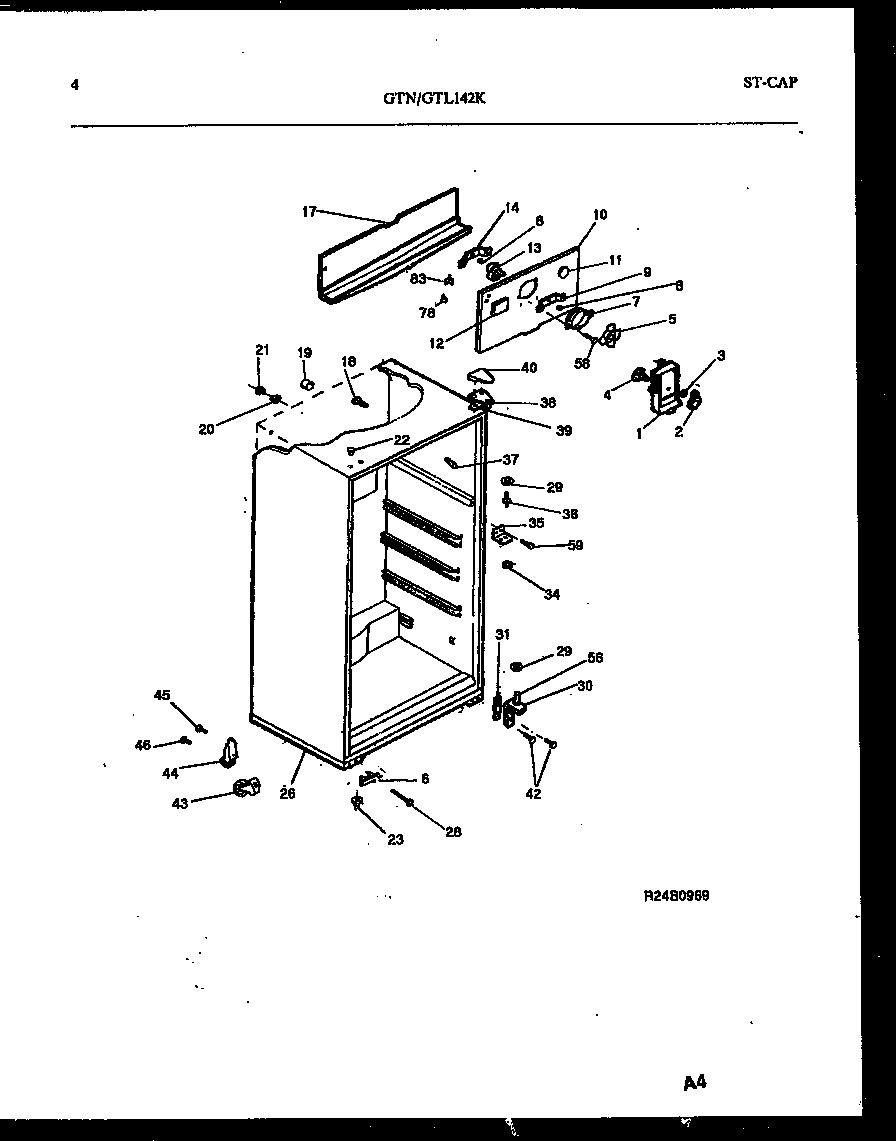

GTL142HK0 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303277007
1A	5304455650 Frigidaire Refrigerator Screw
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	COVER-HOLE, LOWER HINGE
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 3001358
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON – DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	BUTTON-HINGE-WHEAT
23	TUBE – DRAIN
26	WCI 5303006086
28	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
29	WASHER, .34 X .62 X .05, NYLON
30	HINGE – LOWER DOOR
31	SHIM-LOWER HINGE
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
