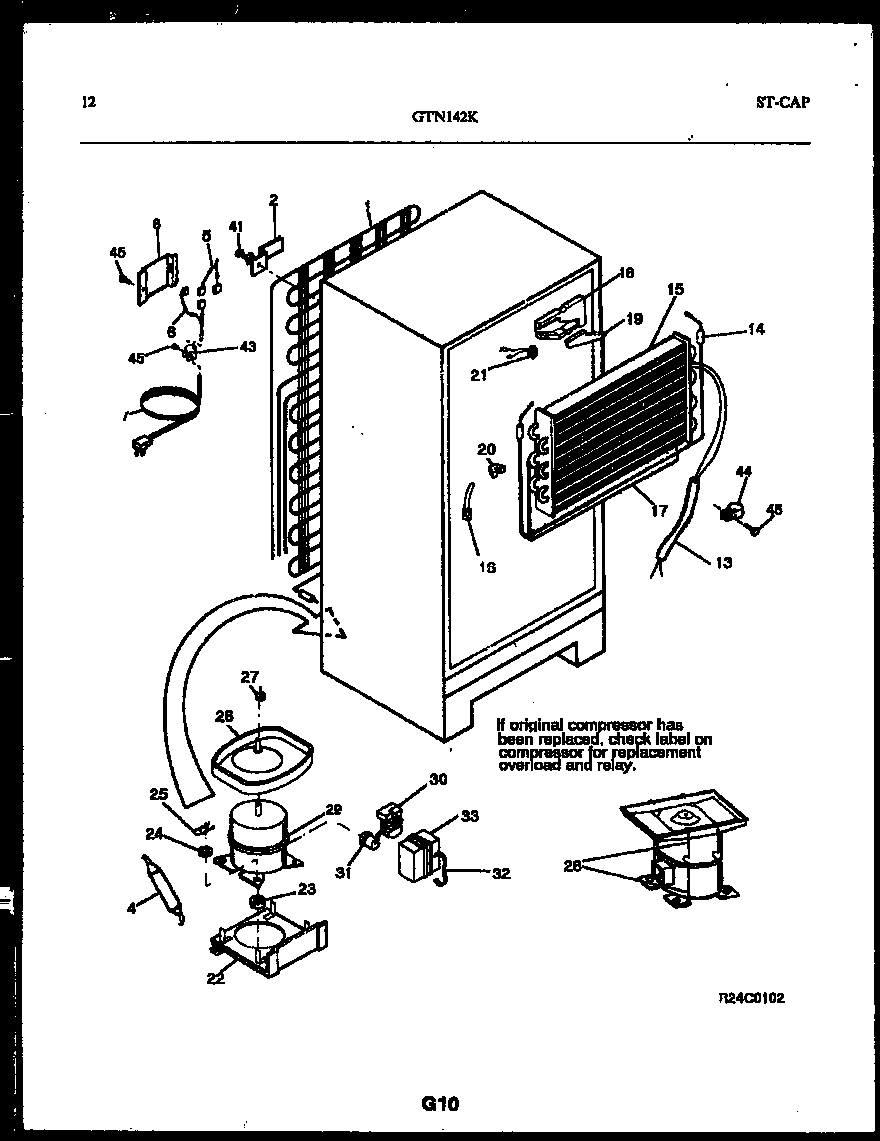

GTL142WK3 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

GTL142WK3 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GTL142WK3 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 5303001341
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
6WIRING HARNESS, COMPRESSOR,
7CORD-ELECTRIC POWER
8WCI 5303001197
13HEAT EXCHANGER, SUCTION LINE
14WCI 5303001362
15WCI 5303272044
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308009596
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29COMPRESSOR W/ ELEC
29ACAPACITOR
30RELAY-TL
31WCI 5303276514
