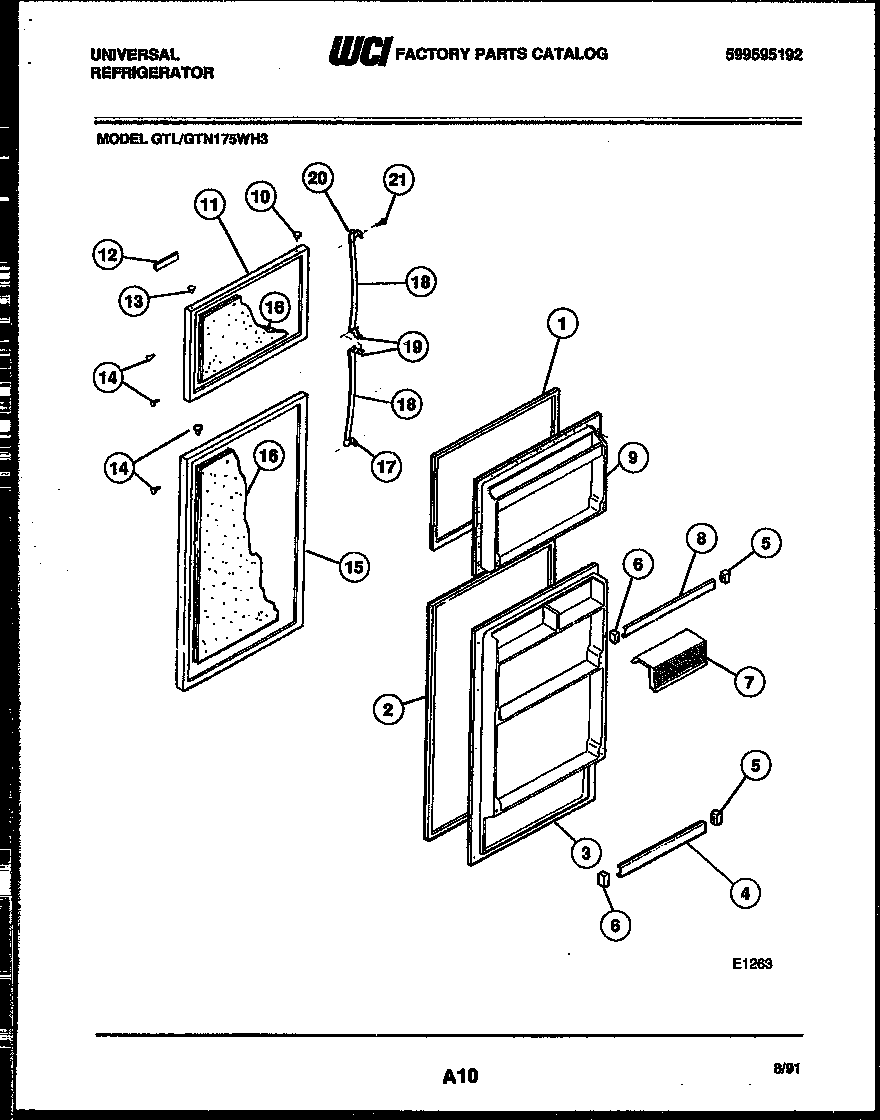

GTL175BH3 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303001399
2	218730603 Frigidaire Door Gasket
3	WCI 5303001516
5	SUPPORT-DOOR RACK, RH
6	SUPPORT-DOOR RACK, LH
7	WCI 5316177644
8	RACK-DOOR
9A	5304455651 Frigidaire Refrigerator Screw
9	PANEL-INNER DOOR, FRZR
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11A	WCI 5308000255
11	PANEL-FRZR DOOR, ALMOND
12	FRAME-NAMEPLATE
13	BEARING-HINGE
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15A	DOOR STOP, REFR SECTION
15	WCI G185600-11
16	INSULATION-BULK (NON-ILLUSTRATED)
17	BOTTOM HANDLE END CAP
18	WCI 5317049529
19	WCI 5303001296
20	WCI 5303001297
21	WCI 5308011745
