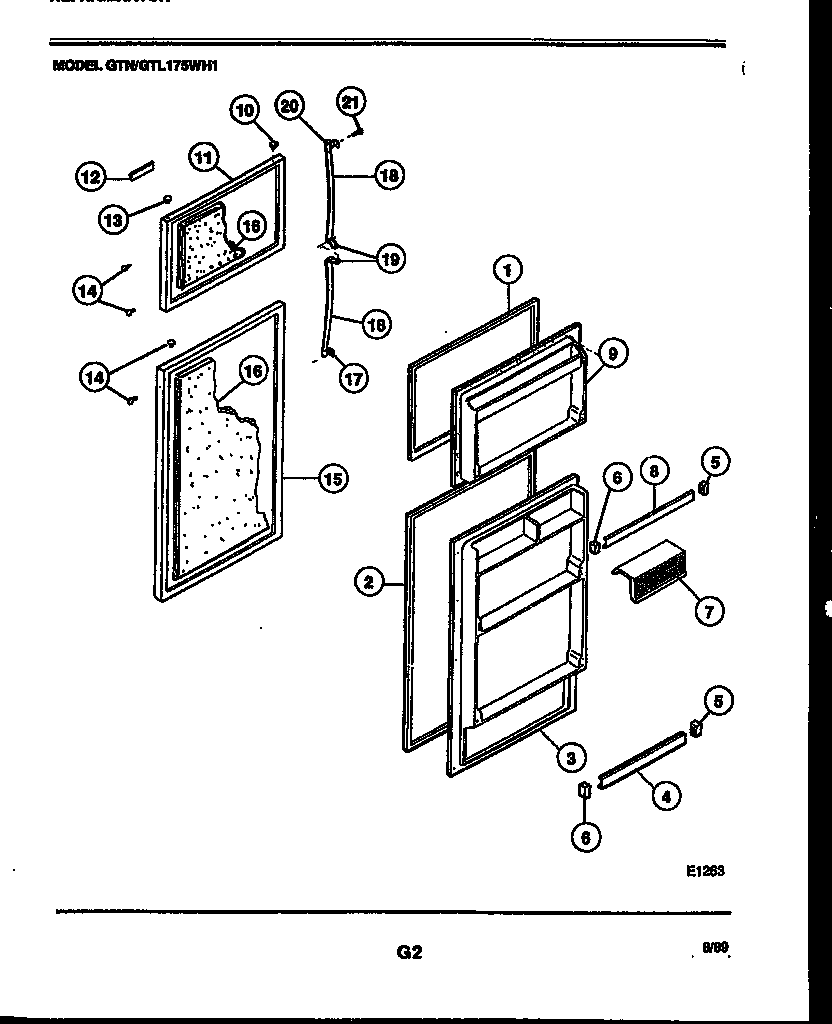

GTL175HH1 02 – DOOR PARTS

GTL175HH1 02 – DOOR PARTS

Written by

in

GTL175HH1 02 – DOOR PARTS

Products

PositionProduct
1GASKET-FREEZER
2218730603 Frigidaire Door Gasket
3PNL, INNER DOOR
4WCI 3001515
5SUPPORT DOOR RACK RH (4)
6SUPPORT DOOR RACK LH (4)
7DOOR-DAIRY
8RACK-FRZR DOOR
9PANEL, I.D. FZR.
9A218843801 Frigidaire Refrigerator Screw
10WCI G169332-01
11WCI G185599
12WCI G171161-01
13BEARING, HINGE (3)
14240494001 Frigidaire Refrigerator Plug Button
15ADOOR STOP (2)
15WCI G185600
16WCI G89643
17WCI G179801
18GRIP-HANDLE (2)
19WCI G187329-01
20WCI G179800
21WCI G185566
