GTL175HH3 04 – SHELVES AND SUPPORTS

GTL175HH3 04 – SHELVES AND SUPPORTS

Written by

in

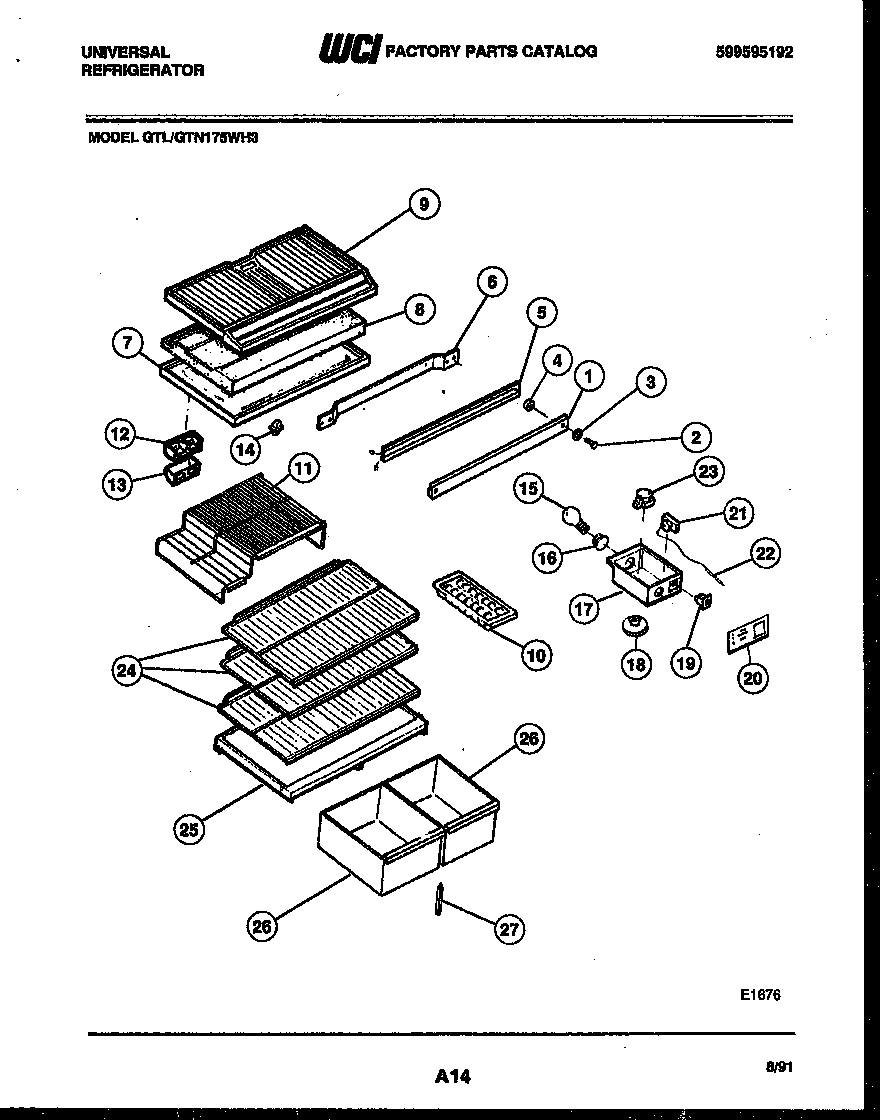

GTL175HH3 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3916132
2WCI 5308012258
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7TOP PANEL-REFR, W/ SNAP BUSHING
7AWCI 5303001380
8WCI 5308009750
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
9WCI 5303001537
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “STEP“
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17CONTROL BOX
17A5304455650 Frigidaire Refrigerator Screw
18KNOB-CONTROL
19SWITCH-ENERGY SAVER, SLIDE TYPE
20LABEL-CONTROL BOX
21AWCI 5303001260
21WCI 5303200810
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303001521
25COVER-CRISPER PAN
26PAN-CRISPER, (2)
27SUPPORT-CRISPER CVR, ADJUSTABLE
