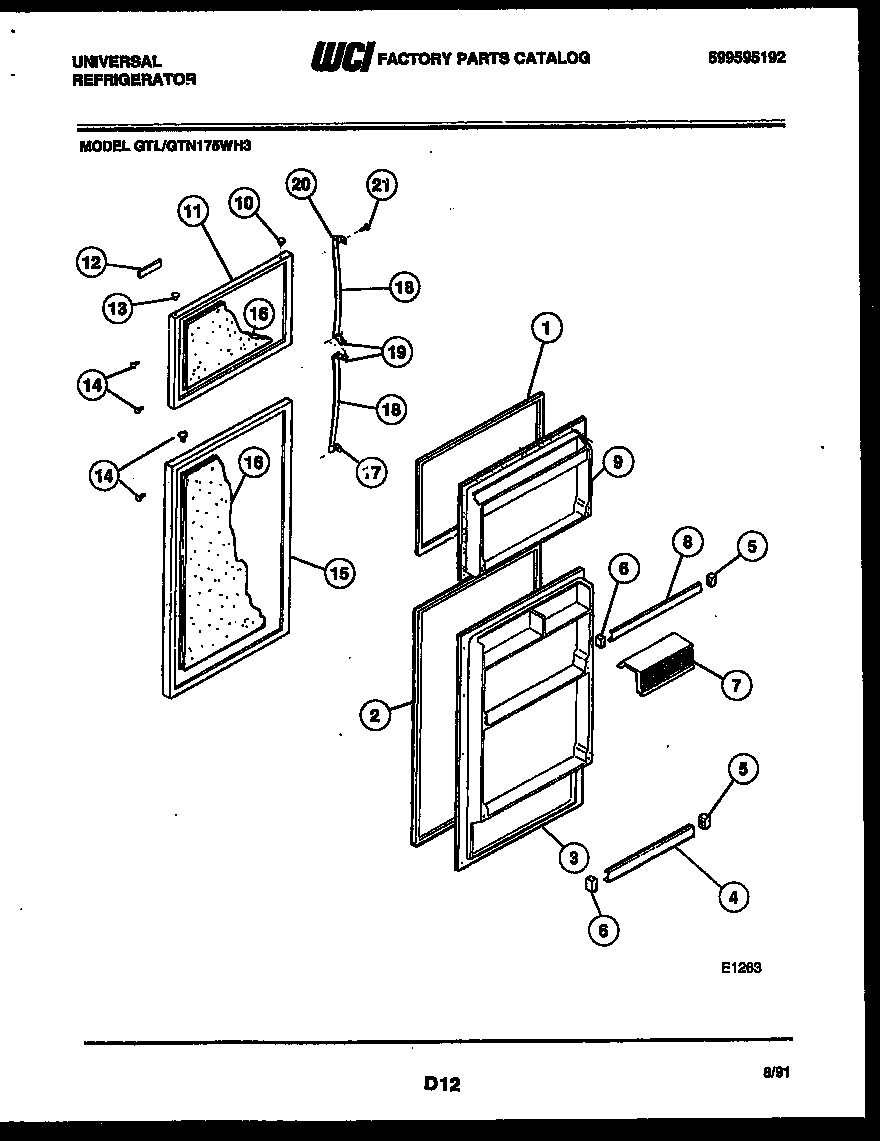

GTL175WH3-45 02 – DOOR PARTS

GTL175WH3-45 02 – DOOR PARTS

Written by

in

GTL175WH3-45 02 – DOOR PARTS

Products

PositionProduct
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3WCI 5303001516
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7WCI 5316177644
8RACK-DOOR
95304455651 Frigidaire Refrigerator Screw
9PANEL-INNER DOOR, FRZR
10BUTTON-WHEAT
10BUTTON-AVOCADO
10BUTTON PLUG-COFFEE
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHEAT
11WCI 5308000255
11PANEL-FRZR DOOR, ALMOND
11PANEL-FRZR DOOR, WHITE
11WCI 5318559908
11WCI G185599-10
12FRAME-NAMEPLATE
13BEARING-HINGE
14240494001 Frigidaire Refrigerator Plug Button
14BUTTON-WHEAT
14BUTTON-AVOCADO
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14BUTTON PLUG-COFFEE
15PANEL-REFR DOOR, WHITE
15DOOR STOP, REFR SECTION
15WCI G185600-10
15PANEL-REFR DOOR, WHEAT
15WCI 5318560008
15WCI G185600-11
16INSULATION-BULK (NON-ILLUSTRATED)
17BOTTOM HANDLE END CAP
18WCI 5317049529
19WCI 5303001296
20WCI 5303001297
21WCI 5308011745
