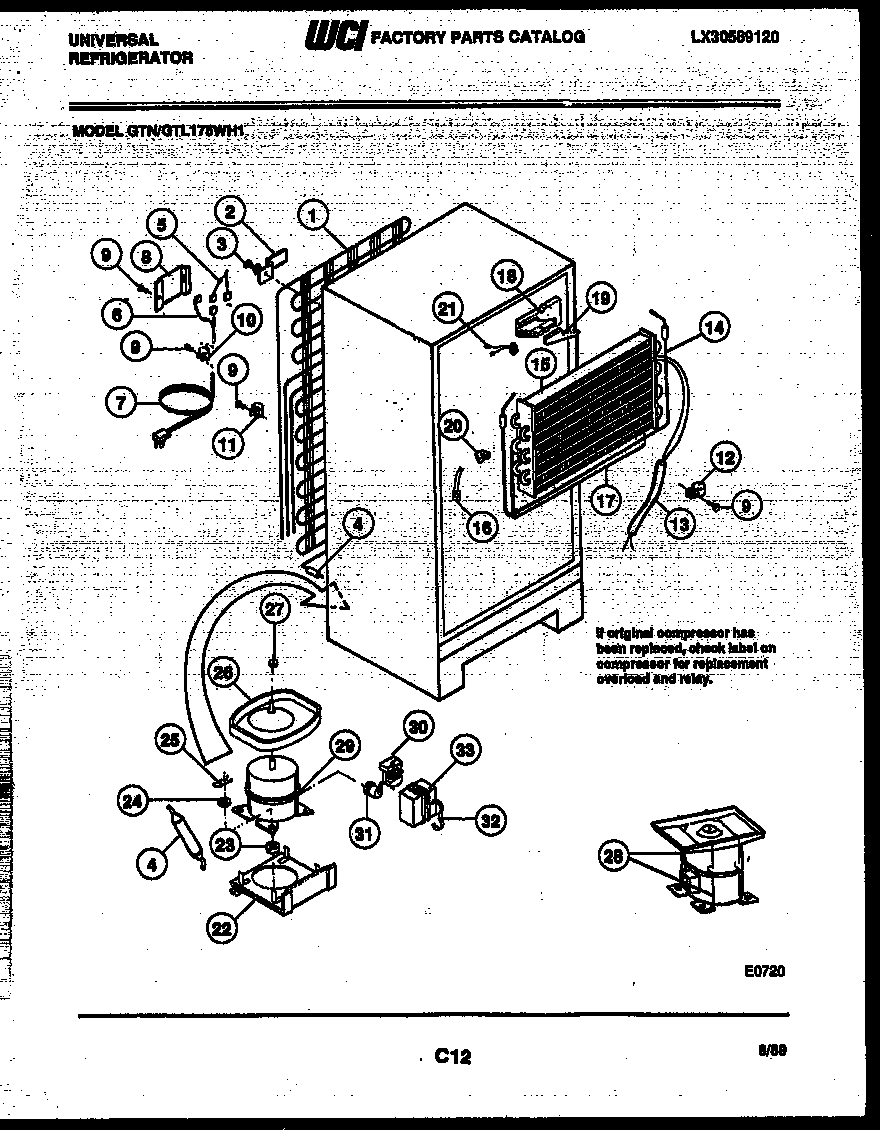

GTL175WHJ1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*48149	WCI G189437
*48149	HOT TUBE REPAIR KIT
1	WCI G178225
2	BRACKET-CONDENSER MOUNTING (4)
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS, WIRING
6	HARNESS-COMPRESSOR
7	CORD, SERVICE
8	WCI G183584
9	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
12	240396801 Frigidaire Refrigerator Tube Clamp
13	WCI 08000728
14	WCI 08009754
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR
18	BLOCK-EVAPORATOR RH
19	PLUG, EVAPORATOR INSULATION BLOCK, R H
20	BLOCK, LEFT SIDE
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	PLATE
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER, COMPRESSOR MOUNTING (4)
25	CLIP, COMPRESSOR MOUNTING (4)
26A	DEFROST PAN-ORIGINAL COMPRESSOR
26B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26	DEFROST PAN & NUT
27	NUT, LOCK
28	PAN RETAINER KIT-SERVICE
29	COMPRESSOR WITH ELECTRICALS
30	WCI G182225-12
31	WCI G185797
32	STRAP-BALE
33	WCI 08016583
