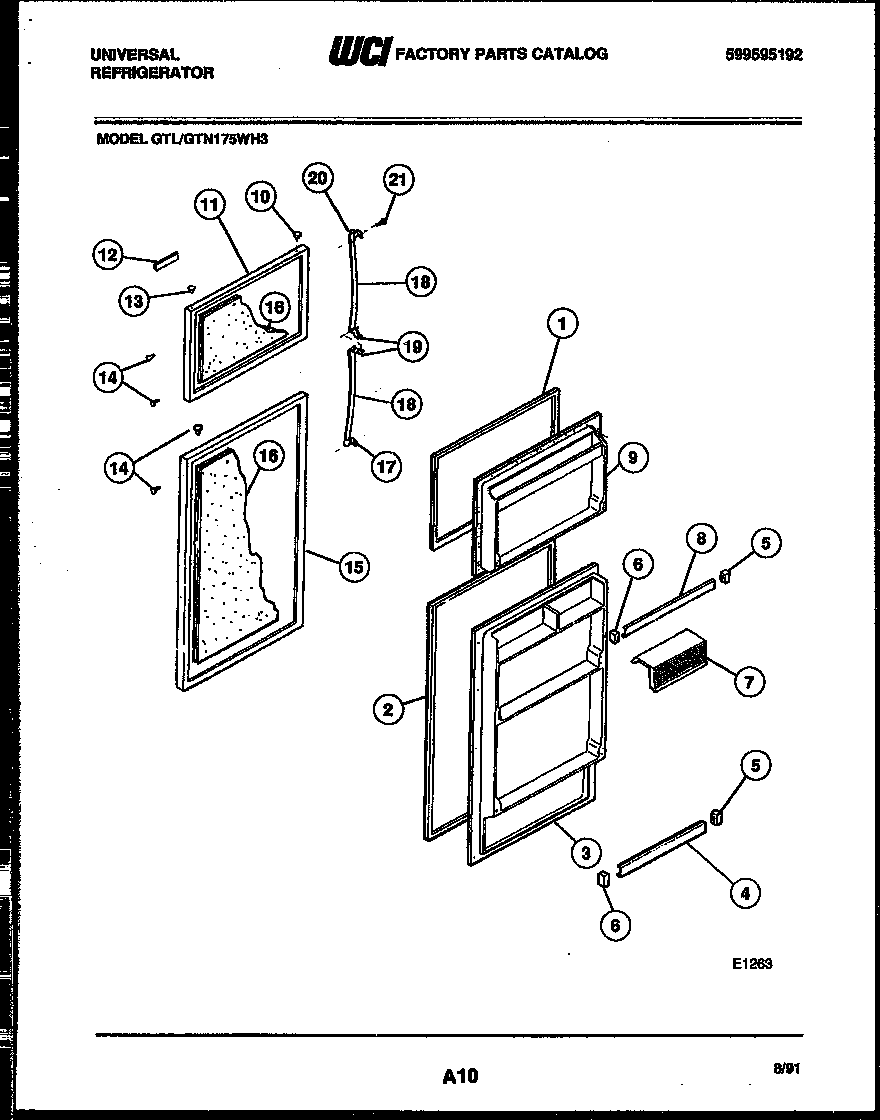

GTL175WHL3 02 – DOOR PARTS

GTL175WHL3 02 – DOOR PARTS

Written by

in

GTL175WHL3 02 – DOOR PARTS

Products

PositionProduct
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3WCI 5303001516
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7WCI 5316177644
8RACK-DOOR
9A5304455651 Frigidaire Refrigerator Screw
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11AWCI 5308000255
11PANEL-FRZR DOOR, ALMOND
12FRAME-NAMEPLATE
13BEARING-HINGE
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15ADOOR STOP, REFR SECTION
15WCI G185600-11
16INSULATION-BULK (NON-ILLUSTRATED)
17BOTTOM HANDLE END CAP
18WCI 5317049529
19WCI 5303001296
20WCI 5303001297
21WCI 5308011745
