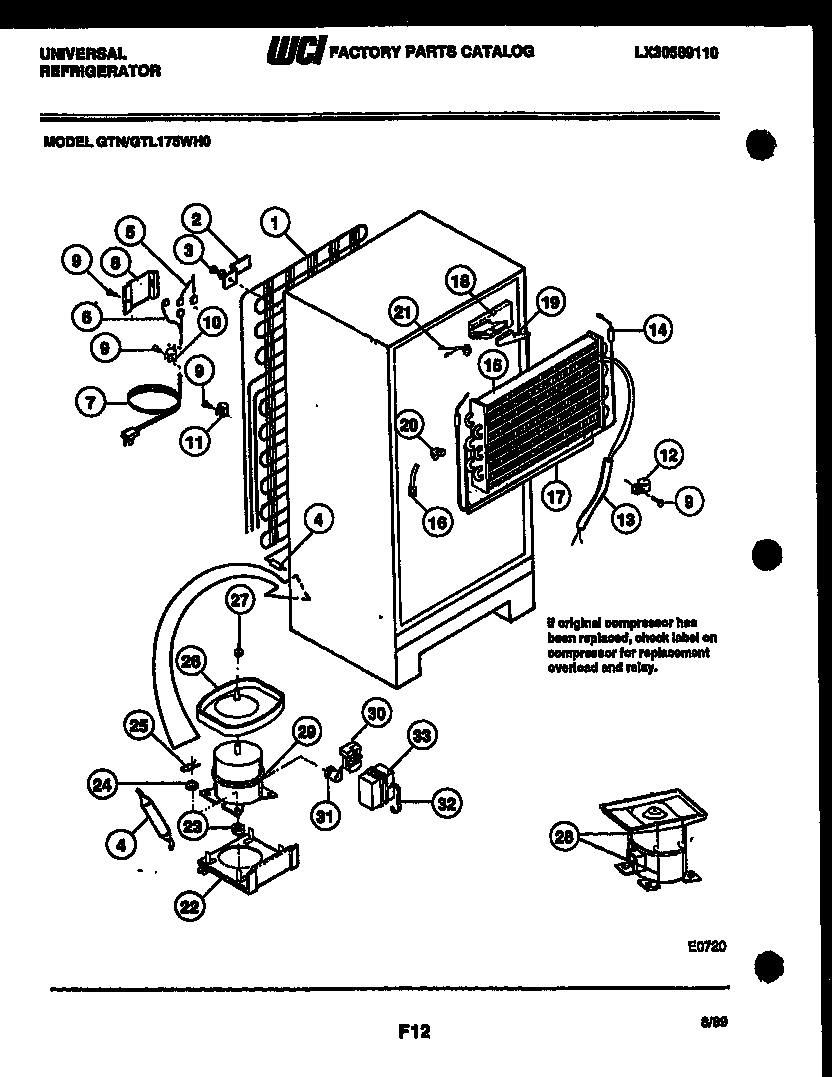

GTL175WW0-23 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

GTL175WW0-23 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GTL175WW0-23 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*44830WCI G189437
*44830HOT TUBE REPAIR KIT
1WCI G178225
2BRACKET-CONDENSER MOUNTING (4)
3WASHER
35308000039 Frigidaire Refrigerator Screw
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS, WIRING
6HARNESS-COMPRESSOR
7CORD, SERVICE
8WCI G183584
95304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
11240396801 Frigidaire Refrigerator Tube Clamp
13WCI 08000728
14WCI 08009754
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR
18BLOCK-EVAPORATOR RH
19PLUG, EVAPORATOR INSULATION BLOCK, R H
20BLOCK, LEFT SIDE
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22PLATE
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WCI 08003633
25CLIP, COMPRESSOR MOUNTING (4)
265303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26DEFROST PAN & NUT
27NUT, LOCK
28PAN RETAINER KIT-SERVICE
29COMPRESSOR-SERVICE
30WCI 3007171
31WCI 3007416
31WCI 3017762
325303006412 Frigidaire Refrigerator Cover Mounting Strap
