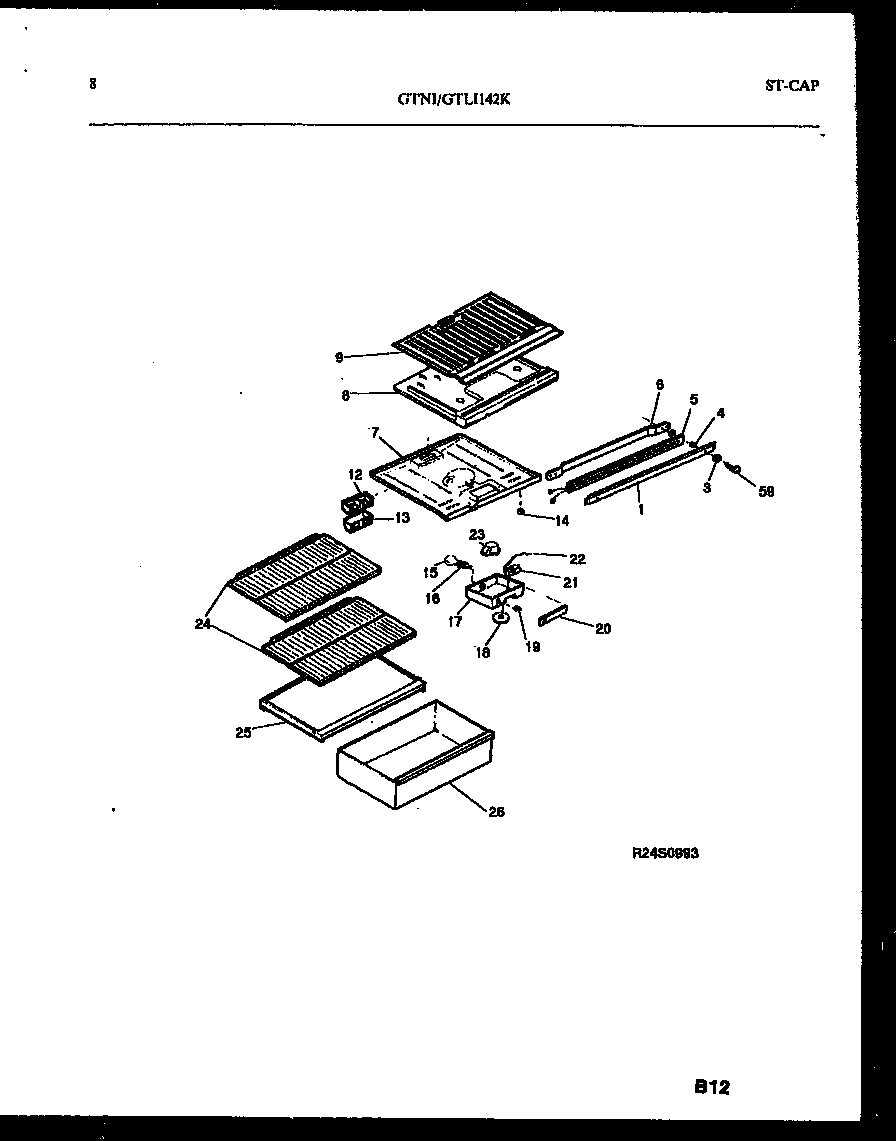

GTLI142BK0 05 – SHELVES AND SUPPORTS

GTLI142BK0 05 – SHELVES AND SUPPORTS

Written by

in

GTLI142BK0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303916134
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 5308017408
6WCI 5308003604
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/ SNAP BUSHING
7AWCI 5303001380
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8WCI 5308000759
9WCI 5308000748
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17APLUG BTN (NON-ILLUSTRATED)
17WCI 5317465503
17B5304455650 Frigidaire Refrigerator Screw
18WCI 3018569
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 3018571
21AWCI 5303001260
21WCI 5308015762
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303200772
25WCI 5308000749
26WCI 5303276910
