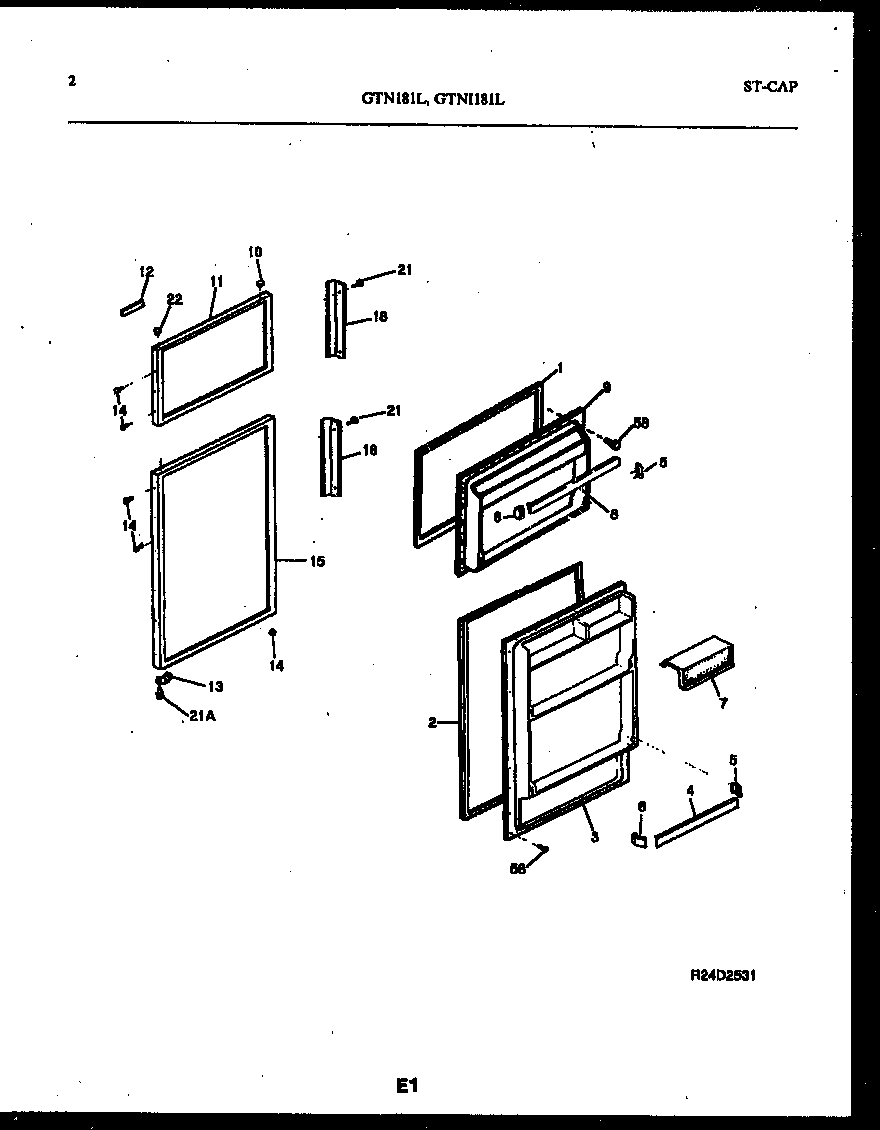

GTLI181WL0 02 – DOOR PARTS

GTLI181WL0 02 – DOOR PARTS

Written by

in

GTLI181WL0 02 – DOOR PARTS

Products

PositionProduct
*63826INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303018791
2WCI 5303018792
3INNER PANEL-REFR
4RACK-DOOR, REFR SECTION, (2)
5WCI 5317828701
6WCI 5317828401
7WCI 5316177640
8RACK-DOOR, FRZR SECTION
9INNER PANEL-FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 3916392
12WCI 5303276130
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE, W/INSUL & BRACE
18WCI 215164904
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
