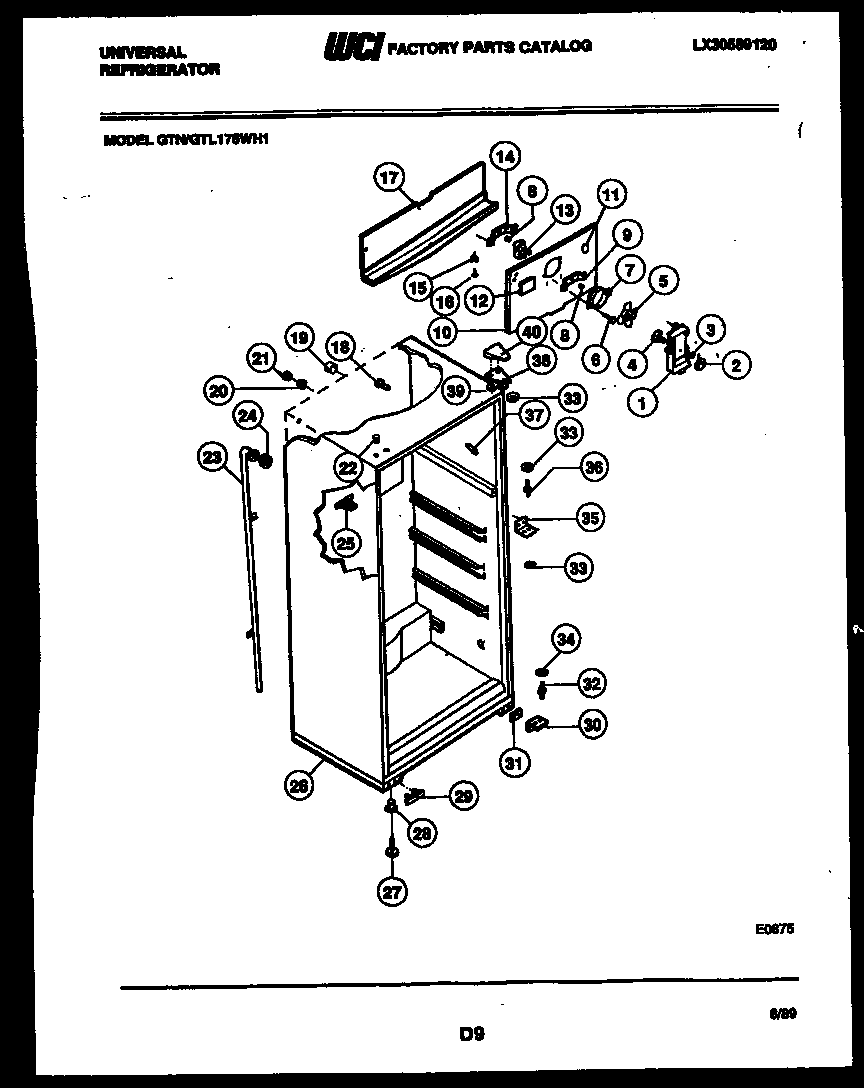

GTM175WH1 03 – CABINET PARTS

Products

Position	Product
*13049	BUTTON, LINER
1	WCI 3001496
2	WCI G162747-21
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	NUT, ORIFICE (2)
10	5304455650 Frigidaire Refrigerator Screw
10	WCI 3001527
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	218843801 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-08
22	WCI G174747-11
22	WCI G174747-09
22	WCI G174747–01
22	WCI G174747-10
23	5304455651 Frigidaire Refrigerator Screw
23	WCI 3001458
24	RING, SEAL (NON-ILLUSTRATED)
25	PIN-PUSH
25	SPOUT DRAIN TUBE
26	WCI 08010091
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	HINGE-BRACKET-BOTTOM
31	SHIM, HINGE
31	TAPPING, PLATE (2)
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	BRACKET, HINGE CENTER
35	SCREW, BRACKET MOUNTING (4)
36	WCI G142220
37	CORNER TRIM-AVOCADO
37	WCI 3202340
37	WCI 3202339
37	WCI 3202338
37	WCI 3202336
38	TAPPING PLATE (2)
38	BRACKET, TOP HINGE
38	241710601 Frigidaire Refrigerator Screw
39	WCI G183861
40	COVER HINGE, COFFEE
40	COVER, TOP HINGE, ALMOND
40	COVER, TOP HINGE, AVOCADO
40	COVER HINGE, WHEAT
40	COVER HINGE, WHITE
