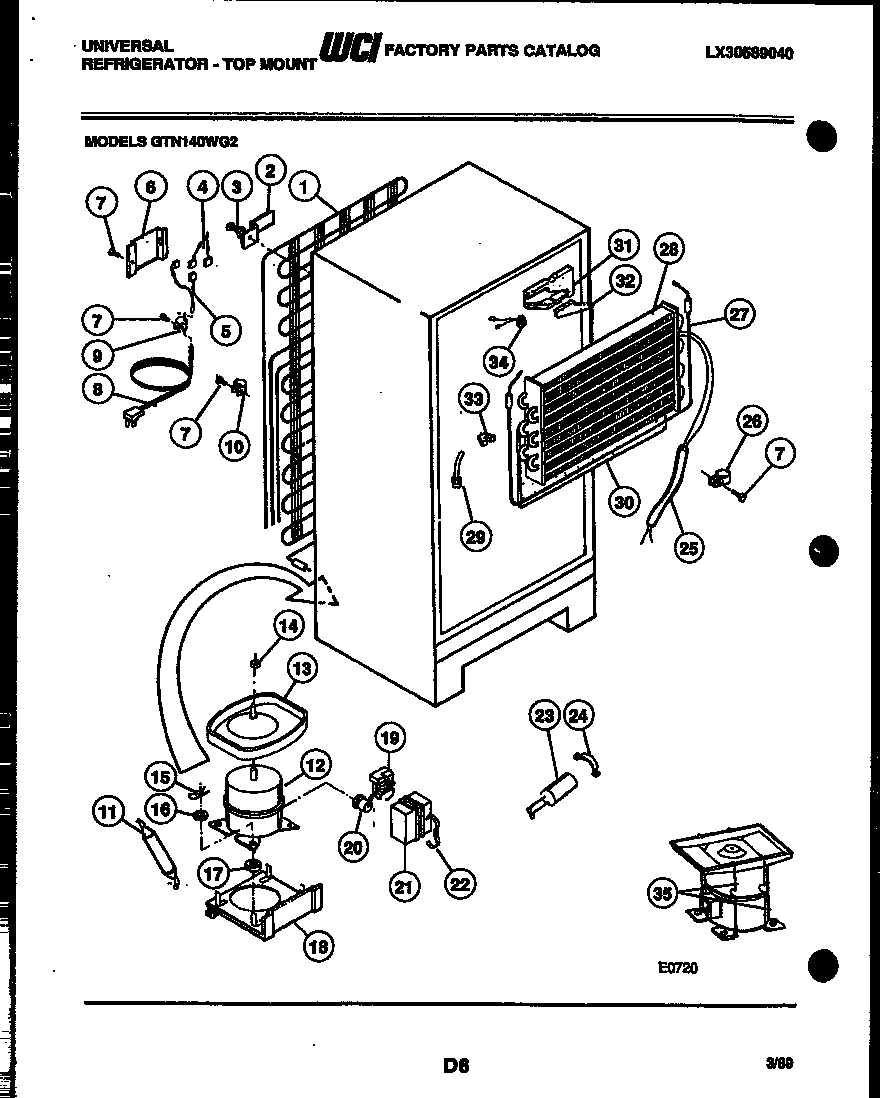

GTN140AG2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*454035303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*45403HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1WCI G178225
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
4HARNESS, WIRING
5HARNESS-COMPRESSOR
6WCI G183584
75304455651 Frigidaire Refrigerator Screw
8CORD, SERVICE
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10CLAMP-CABLE
115303305677 Frigidaire Replacement Filter Dryer Filters
12WCI 3916004
13WCI 3001397
14NUT, LOCK
15CLIP, COMPRESSOR MOUNTING (4)
16WASHER, COMPRESSOR MOUNTING (4)
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI G162822
19WCI G182225-18
20WCI 3001713
225303006412 Frigidaire Refrigerator Cover Mounting Strap
23CAPACITOR-RUN
24WCI 3001391
25WCI 3001364
26240396801 Frigidaire Refrigerator Tube Clamp
27WCI G162432-02
28WCI 3001366
295308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30INSULATOR
31BLOCK, EVAPORATOR, RH
32PLUG, EVAPORATOR INSULATION BLOCK, R H
33BLOCK, LEFT SIDE
345303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35PAN RETAINER KIT-SERVICE
