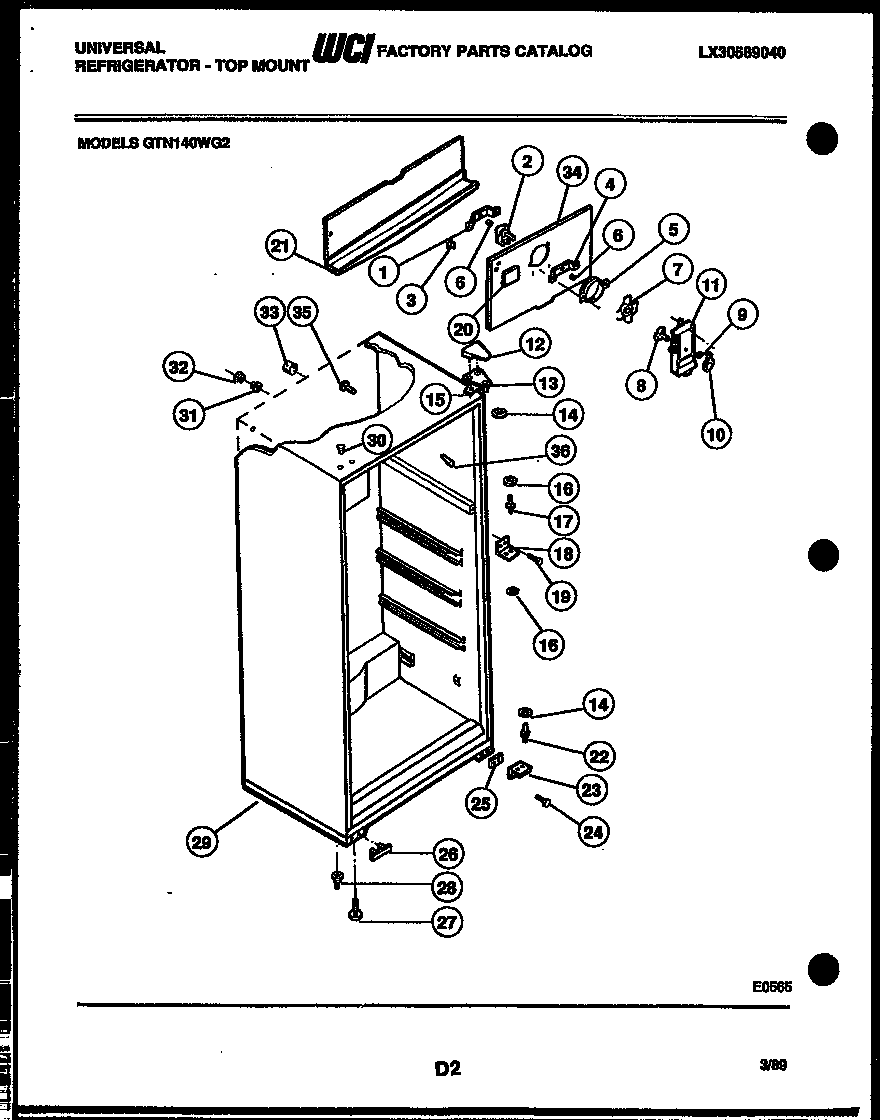

GTN140CG2 03 – CABINET PARTS

Products

Position	Product
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
3A	5304455651 Frigidaire Refrigerator Screw
4	WCI G185302
5A	218843801 Frigidaire Refrigerator Screw
5	RING, FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER FAN COVER
9	NUT, DAMPER MOUNTING
10	KNOB, DAMPER CONT.
11A	5304455650 Frigidaire Refrigerator Screw
11	COVER-FAN
12	COVER HINGE, COFFEE
13	BRACKET, TOP HINGE
13A	241710601 Frigidaire Refrigerator Screw
14	WCI G103903
15	WCI G183861
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW, BRACKET MOUNTING (4)
19A	WASHER (2)
20	WCI 3001328
21	TROUGH-DRAIN
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	BRACKET, HINGE, LOWER
24A	TAPPING, PLATE (2)
25	SHIM, HINGE
26	WCI G166912
27	LEG-LEVELING (2)
27A	NUT, ANCHOR (2)
28	CLIP (4)
29	BASE-CABINET
30	WCI G174747-10
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34	COVER-COIL
34A	NUT, ORIFICE (2)
34B	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
35	WCI G163669
36	TRIM, COFFEE
