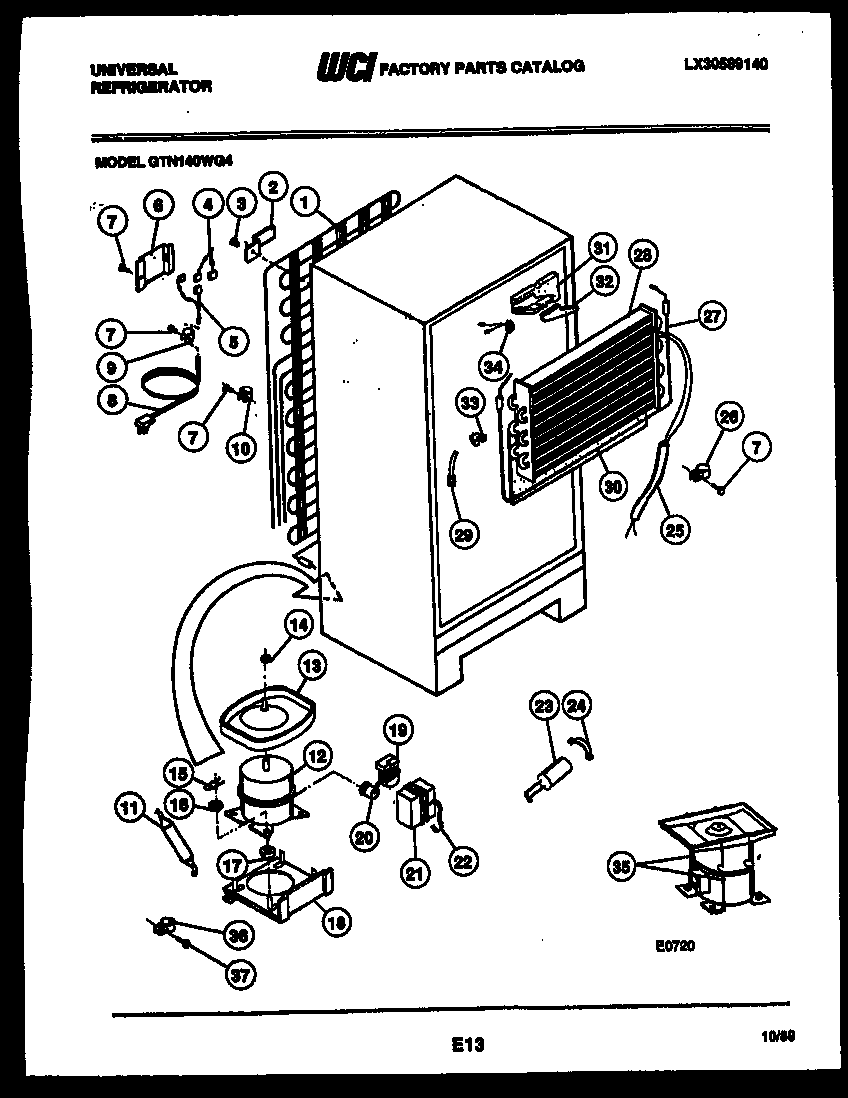

GTN140CH4 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*13266	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
*13266	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1	WCI G178225
2	BRACKET-CONDENSER MOUNTING (4)
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS, WIRING
5	HARNESS-COMPRESSOR
6	WCI G183584
7	5304455651 Frigidaire Refrigerator Screw
8	CORD, SERVICE
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
10	240396801 Frigidaire Refrigerator Tube Clamp
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	WCI 3916012
13	DEFROST PAN-ORIGINAL COMPRESSOR
13A	DEFROST PAN & NUT
14	NUT, LOCK
15	CLIP, COMPRESSOR MOUNTING (4)
16	WASHER, COMPRESSOR MOUNTING (4)
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18	WCI G162822
19	WCI G182225-18
20	WCI 3202863
20A	WCI 3202891
21	WCI 08016583
22	STRAP-BALE
23	WCI 3018427
24	STRAP CAPACITOR
25	EXCHANGER-HEAT
27	WCI G162432-02
28	EVAPORATOR
29	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30	INSULATOR
31	BLOCK, EVAPORATOR, RH
32	PLUG, EVAPORATOR INSULATION BLOCK, R H
33	BLOCK, LEFT SIDE
34	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35	PAN RETAINER KIT-SERVICE
36	WCI 3201679
37	218843801 Frigidaire Refrigerator Screw
