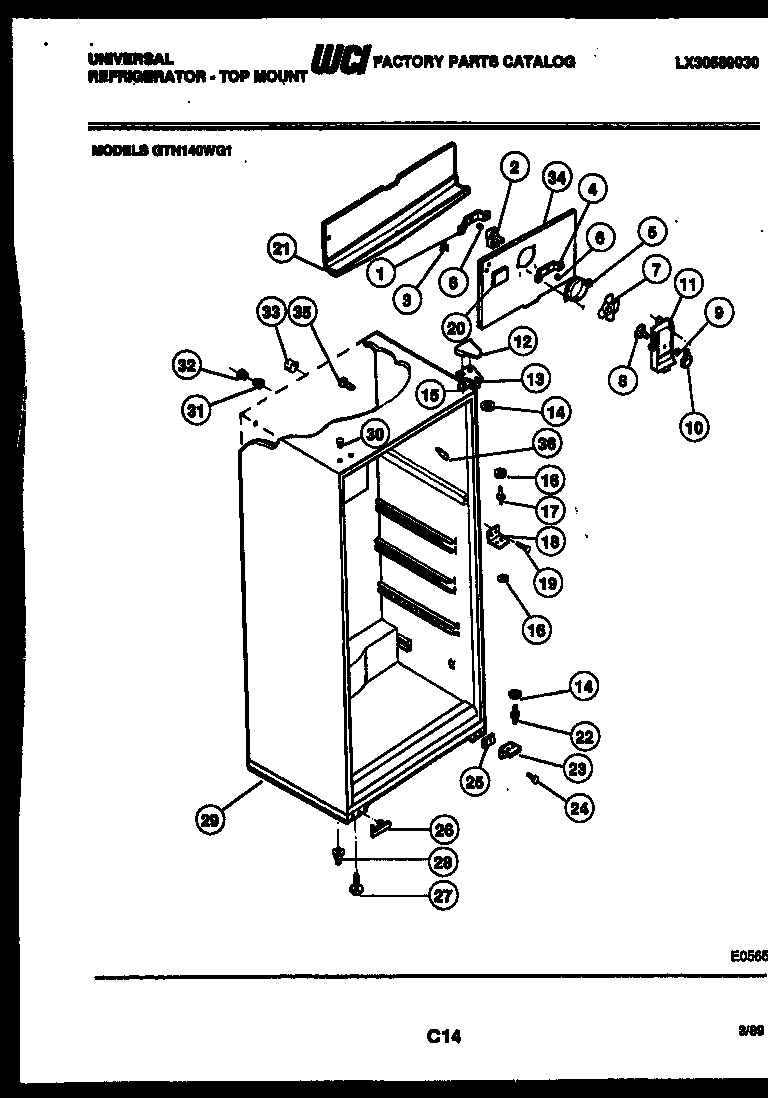

GTN140HG1 03 – CABINET PARTS

Products

PositionProduct
*12033BUTTON, LINER
1WCI G185303
25300158289 Frigidaire Evaporator Fan Motor
3WCI G164571
3A5304455651 Frigidaire Refrigerator Screw
4WCI G185302
5A218843801 Frigidaire Refrigerator Screw
5RING, FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER FAN COVER
9NUT, DAMPER MOUNTING
10KNOB, DAMPER CONT.
11A5304455650 Frigidaire Refrigerator Screw
11COVER-FAN
12COVER HINGE, WHEAT
13BRACKET, TOP HINGE
13A241710601 Frigidaire Refrigerator Screw
14WCI G103903
15WCI G183861
16WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17WCI G142220
18BRACKET, HINGE CENTER
19AWASHER (2)
19SCREW, BRACKET MOUNTING (4)
20WCI 3001328
21TROUGH-DRAIN
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23BRACKET, HINGE, LOWER
24ATAPPING, PLATE (2)
25SHIM, HINGE
26WCI G166912
27LEG-LEVELING (2)
27ANUT, ANCHOR (2)
28CLIP (4)
29BASE-CABINET
30WCI G174747-09
31WCI G174733
32WCI G174734
33TUBE, INSULATION (2)
34BPLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
34ANUT, ORIFICE (2)
34COVER-COIL
35WCI G163669
36TRIM, WHEAT
