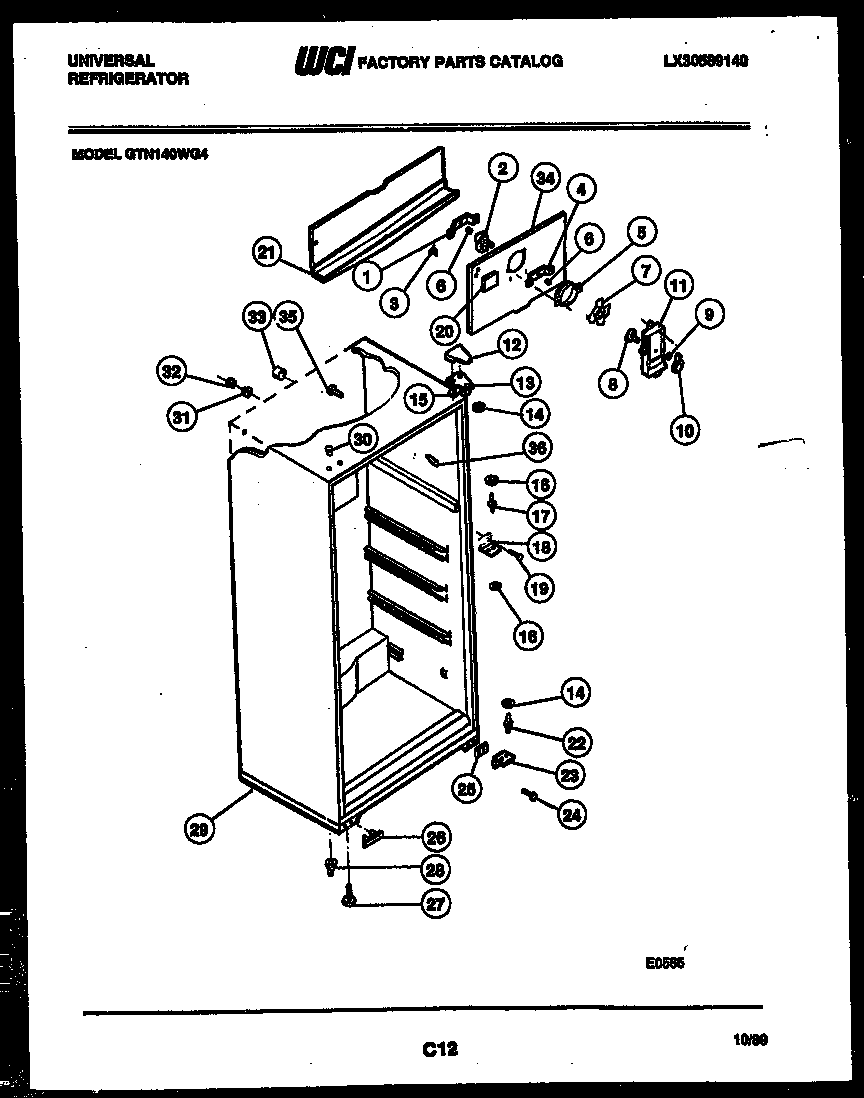

GTN140WG4 03 – CABINET PARTS

GTN140WG4 03 – CABINET PARTS

Written by

in

GTN140WG4 03 – CABINET PARTS

Products

PositionProduct
*20088BUTTON, LINER
1WCI 3205119
25300158289 Frigidaire Evaporator Fan Motor
3WCI G164571
3A5304455651 Frigidaire Refrigerator Screw
4WCI 3205118
5RING, FAN ORIFICE
5A218843801 Frigidaire Refrigerator Screw
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER FAN COVER
9NUT, DAMPER MOUNTING
10KNOB, DAMPER CONT.
11WCI G163061-82
12COVER, TOP HINGE, AVOCADO
12COVER HINGE, WHITE
12COVER HINGE, COFFEE
12COVER HINGE, WHEAT
12COVER, TOP HINGE, ALMOND
13BRACKET, TOP HINGE
13A241710601 Frigidaire Refrigerator Screw
13BTAPPING PLATE (2)
14WCI G103903
15WCI G183861
16WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17WCI G142220
18BRACKET, HINGE CENTER
19SCREW, BRACKET MOUNTING (4)
20WCI 3001328
21TROUGH-DRAIN
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23BRACKET, HINGE, LOWER
24ATAPPING, PLATE (2)
25SHIM, HINGE
26WCI G166912
27LEG-LEVELING (2)
27ANUT, ANCHOR (2)
28CLIP (4)
29BASE-CABINET
30WCI G174747-09
30WCI G174747-11
30WCI G174747–01
30WCI G174747-08
30WCI G174747-10
31WCI G174733
32WCI G174734
33TUBE, INSULATION (2)
34A5304455650 Frigidaire Refrigerator Screw
34BNUT, ORIFICE (2)
34CPLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
34COVER-COIL
35WCI G163669
36TRIM CORNER-ALMOND
36TRIM, WHEAT
36TRIM (4)
36TRIM, COFFEE
36TRIM-CAB CORNER-AVOC
