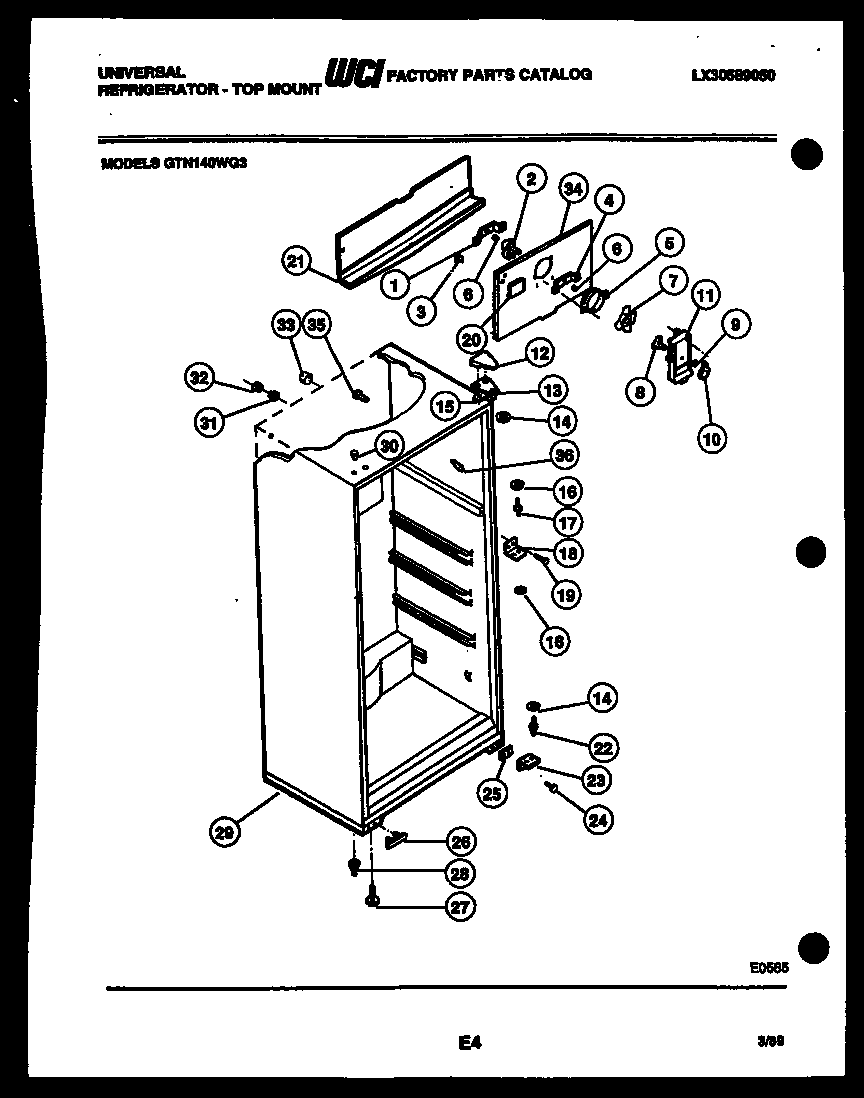

GTN140WGH3 03 – CABINET PARTS

Products

Position	Product
*12179	BUTTON, LINER
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
3	5304455651 Frigidaire Refrigerator Screw
4	WCI G185302
5	RING, FAN ORIFICE
5	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER FAN COVER
9	NUT, DAMPER MOUNTING
10	KNOB, DAMPER CONT.
11	5304455650 Frigidaire Refrigerator Screw
11	COVER-FAN
12	COVER HINGE, COFFEE
12	COVER HINGE, WHITE
12	COVER HINGE, WHEAT
12	COVER, TOP HINGE, ALMOND
12	COVER, TOP HINGE, AVOCADO
13	241710601 Frigidaire Refrigerator Screw
13	BRACKET, TOP HINGE
14	WCI G103903
15	WCI G183861
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	WASHER (2)
19	SCREW, BRACKET MOUNTING (4)
20	WCI 3001328
21	TROUGH-DRAIN
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	BRACKET, HINGE, LOWER
24	TAPPING, PLATE (2)
25	SHIM, HINGE
26	WCI G166912
27	LEG-LEVELING (2)
27	NUT, ANCHOR (2)
28	CLIP (4)
29	BASE-CABINET
30	WCI G174747-11
30	WCI G174747-09
30	WCI G174747–01
30	WCI G174747-08
30	WCI G174747-10
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34	NUT, ORIFICE (2)
34	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
34	COVER-COIL
35	WCI G163669
36	TRIM CORNER-ALMOND
36	TRIM, WHEAT
36	TRIM (4)
36	TRIM-CAB CORNER-AVOC
36	TRIM, COFFEE
