GTN140WGJ4 04 – SHELVES AND SUPPORTS

GTN140WGJ4 04 – SHELVES AND SUPPORTS

Written by

in

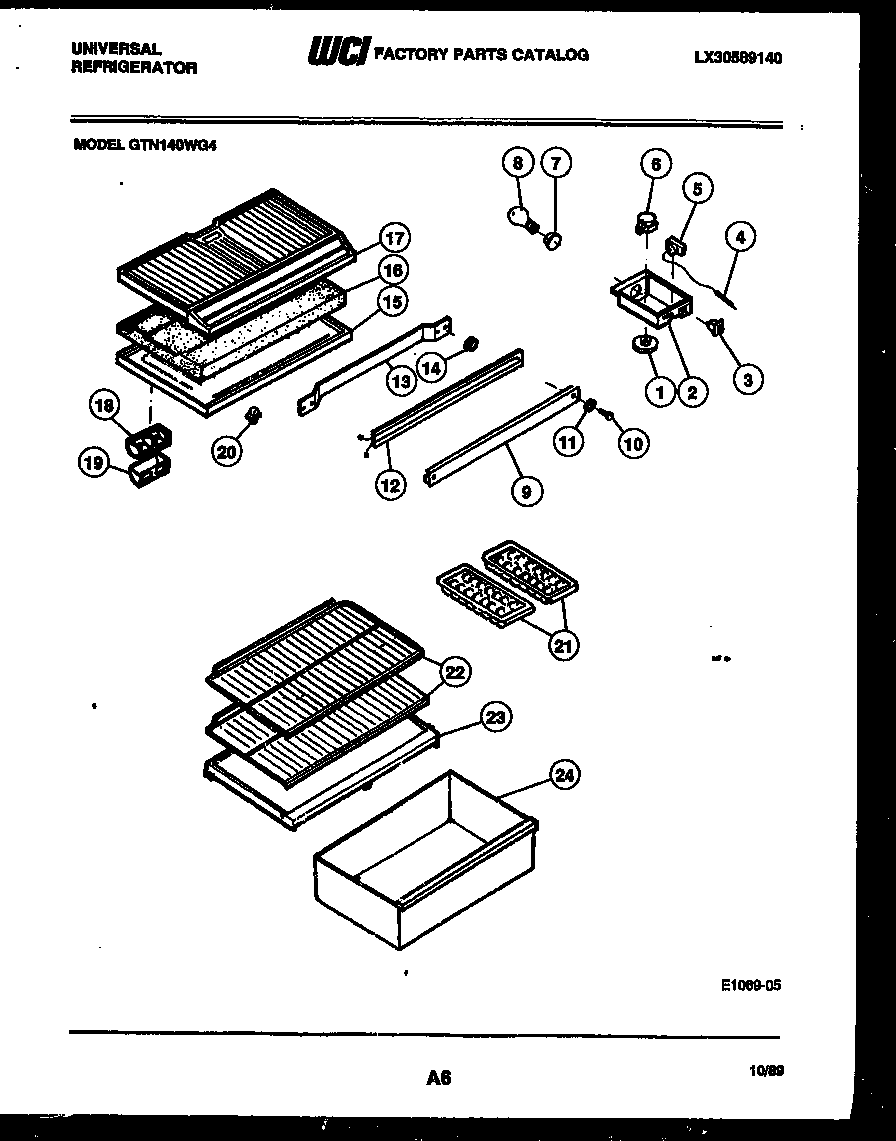

GTN140WGJ4 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3001335
2WCI 3001545
2AWCI G178294-01
2B5304455650 Frigidaire Refrigerator Screw
3SWITCH SLIDE
4TUBE
5AWCI G107080
5CONTROL-COLD
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9WCI 3916132
10SCREW, BRACKET MOUNTING (4)
11WASHER (2)
12WCI G187921
13CLAMP, MULLION MOUNTING
14SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
15ASCREW (5)
15TOP-REFRIGERATOR
16DIVIDER-COMPARTMENT
16AHARNESS, WIRING
17BOTTOM ( FREEZER )
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI 3001542
23COVER-CRISPER
24WCI 3001541
