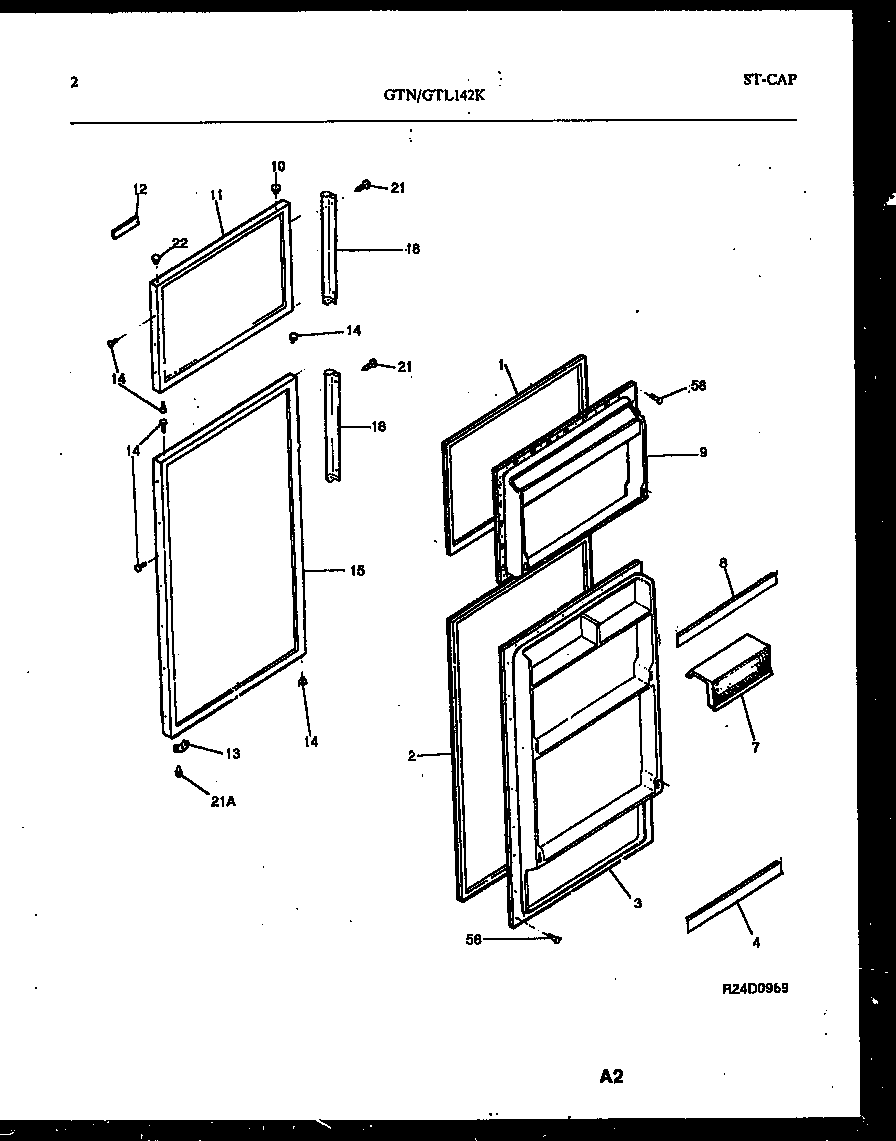

GTN142BK0 02 – DOOR PARTS

GTN142BK0 02 – DOOR PARTS

Written by

in

GTN142BK0 02 – DOOR PARTS

Products

PositionProduct
*51806INSULATION-BULK (NON-ILLUSTRATED)
1GASKET, FRZR DOOR, BROWN, MAGNETIC
2GASKET-REFR DOOR, MAGNETIC
3WCI 5318022801
4WCI 5303276972
7WCI 5303276909
8WCI 5303276971
9WCI 5318023001
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 5303276130
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND
18HANDLE
21SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
