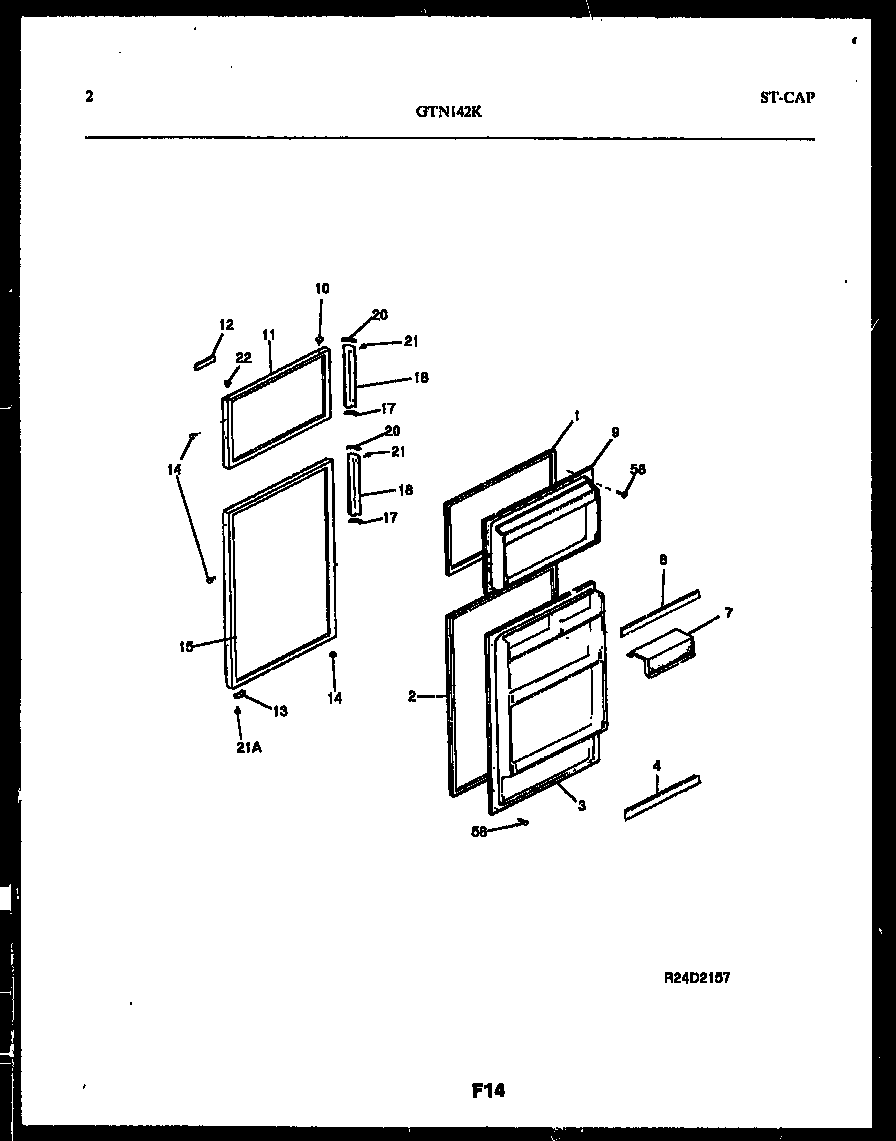

GTN142BK2 02 – DOOR PARTSadmin2025-04-26T11:50:00+00:00GTN142BK2 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *62503 | INSULATION-BULK (NON-ILLUSTRATED) |
| 1 | GASKET, FRZR DOOR, BROWN, MAGNETIC |
| 2 | GASKET-REFR DOOR, MAGNETIC |
| 3 | WCI 5318022801 |
| 4 | WCI 5303276972 |
| 7 | WCI 5303276909 |
| 8 | WCI 5303276971 |
| 9 | WCI 5318023001 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | PANEL-FRZR DOOR, ALMOND |
| 12 | WCI 5303276130 |
| 13 | WCI 5308000255 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PANEL-REFR DOOR, ALMOND |
| 17 | END CAP-BOTTOM (2) |
| 18 | HANDLE |
| 20 | WCI 5308010239 |
| 21 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
