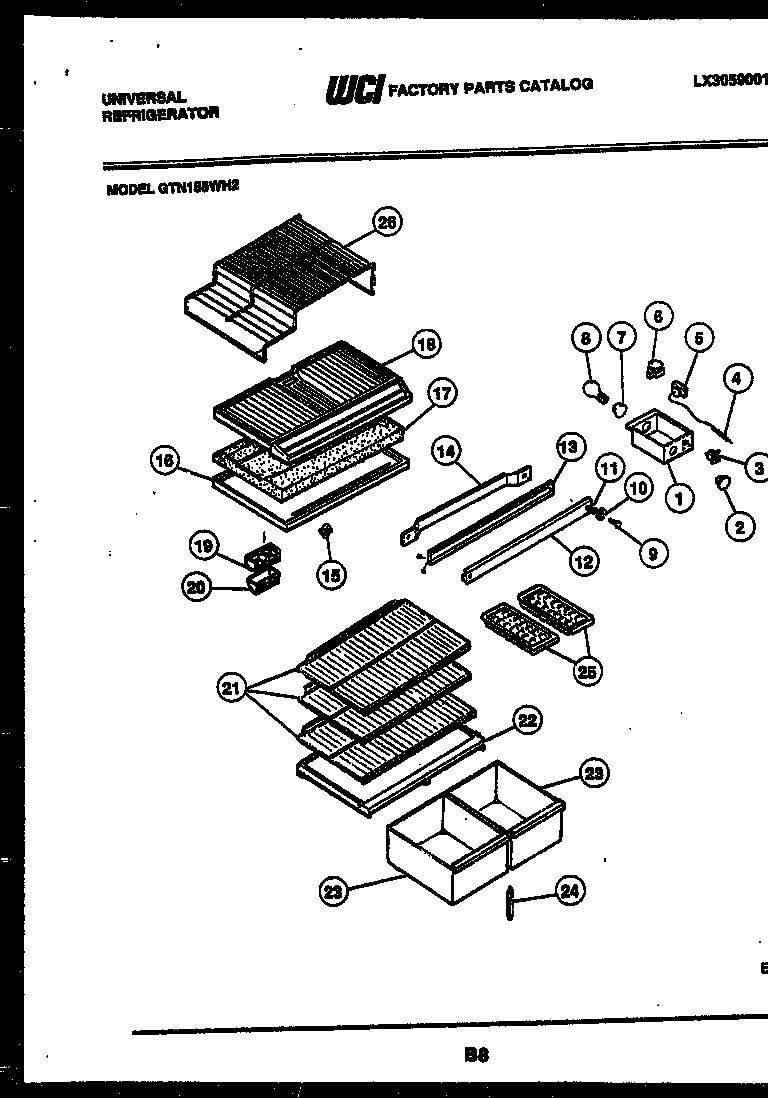

GTN155AH2 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI G174655-18
1A	WCI G178294-01
1B	5304455650 Frigidaire Refrigerator Screw
2	KNOB CONTROL
3	SWITCH SLIDE
4	TUBE
5	CONTROL-COLD
5A	WCI G107080
6	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A	5304455649 Frigidaire Refrigerator Screw
7	SOCKET LIGHT
8	316538904 Frigidaire Oven Lamp Light
9	SCREW, BRACKET MOUNTING (4)
10	WASHER (2)
11	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
12	WCI 3916135
13	WCI 5308017408
14	CLAMP, MULLION MOUNTING
15	5309918806 Frigidaire Refrigerator Light Switch Door
16A	SCREW (5)
16	TOP-REFRIGERATOR
17	DIVIDER-COMPARTMENT
17A	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
18	BOTTOM ( FREEZER )
19	DEFLECTOR AIR
20	WCI G162178
21	WCI G172172-02
22	COVER-CRISPER
23	WCI G177253-06
24	SUPPORT-CRISPER CVR, ADJUSTABLE
25	215667501 Frigidaire Refrigerator Ice Tray Primary
26	WCI G187553-02
