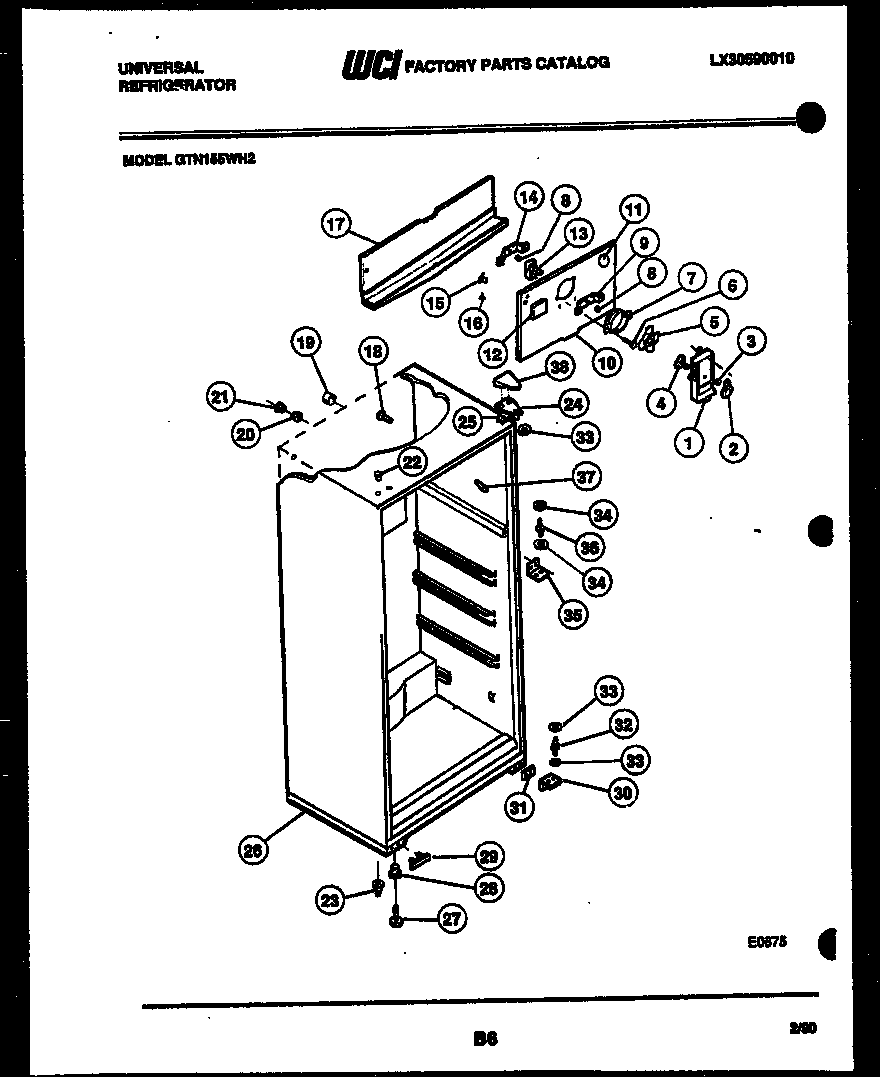

GTN155CH2 03 – CABINET PARTS

Products

Position	Product
*26662	BUTTON, LINER
1	COVER-FAN
2	WCI G162747-22
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10B	240396801 Frigidaire Refrigerator Tube Clamp
10A	NUT, ORIFICE (2)
10C	5304455650 Frigidaire Refrigerator Screw
10G	WCI 163290
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-10
23	CLIP (4)
24A	241710601 Frigidaire Refrigerator Screw
24	BRACKET, TOP HINGE
24B	TAPPING PLATE (2)
25	WCI G183861
26	BASE-CABINET
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	BRACKET, HINGE, LOWER
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	BRACKET, HINGE CENTER
35A	SCREW, BRACKET MOUNTING (4)
36	WCI G142220
37	TRIM, COFFEE
38	COVER HINGE, COFFEE
