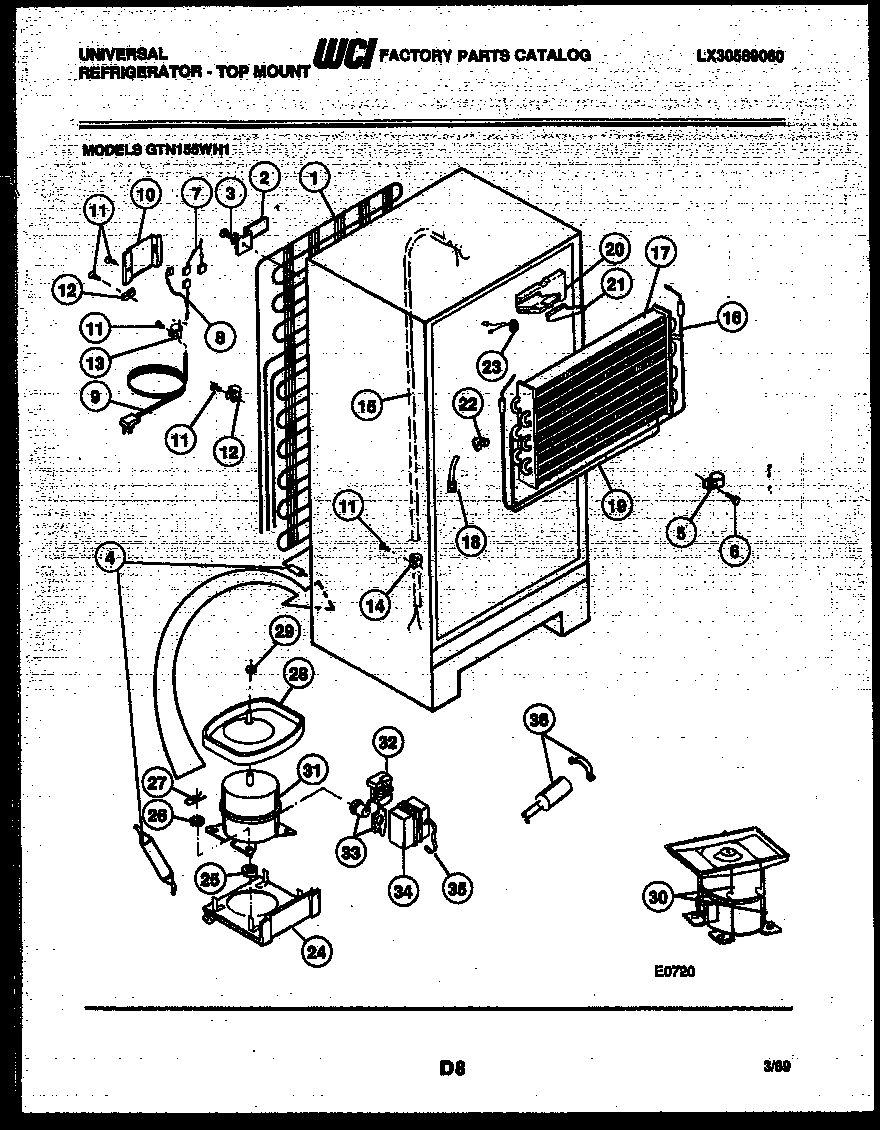

GTN155WHD1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

GTN155WHD1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GTN155WHD1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*48232HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1WCI G178225
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
3WASHER
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3201679
6218843801 Frigidaire Refrigerator Screw
7HARNESS, WIRING
8HARNESS-COMPRESSOR
9CORD, SERVICE
10WCI G183584
115304455651 Frigidaire Refrigerator Screw
125303001199 Frigidaire Refrigerator Wiring Harness Clamp
13240396801 Frigidaire Refrigerator Tube Clamp
15EXCHANGER-HEAT
16WCI G162432-02
17EVAPORATOR
185308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19INSULATOR
20BLOCK, EVAPORATOR, RH
21PLUG, EVAPORATOR INSULATION BLOCK, R H
22BLOCK, LEFT SIDE
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI G162822
25218513300 Frigidaire Refrigerator Compressor Mount Grommet
26WASHER, COMPRESSOR MOUNTING (4)
27CLIP, COMPRESSOR MOUNTING (4)
285303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28DEFROST PAN & NUT
29NUT, LOCK
30PAN RETAINER KIT-SERVICE
31WCI 3916004
32WCI G182225-18
33OVERLOAD & MOUNTING CLIP
355303006412 Frigidaire Refrigerator Cover Mounting Strap
36CAPACITOR-RUN
