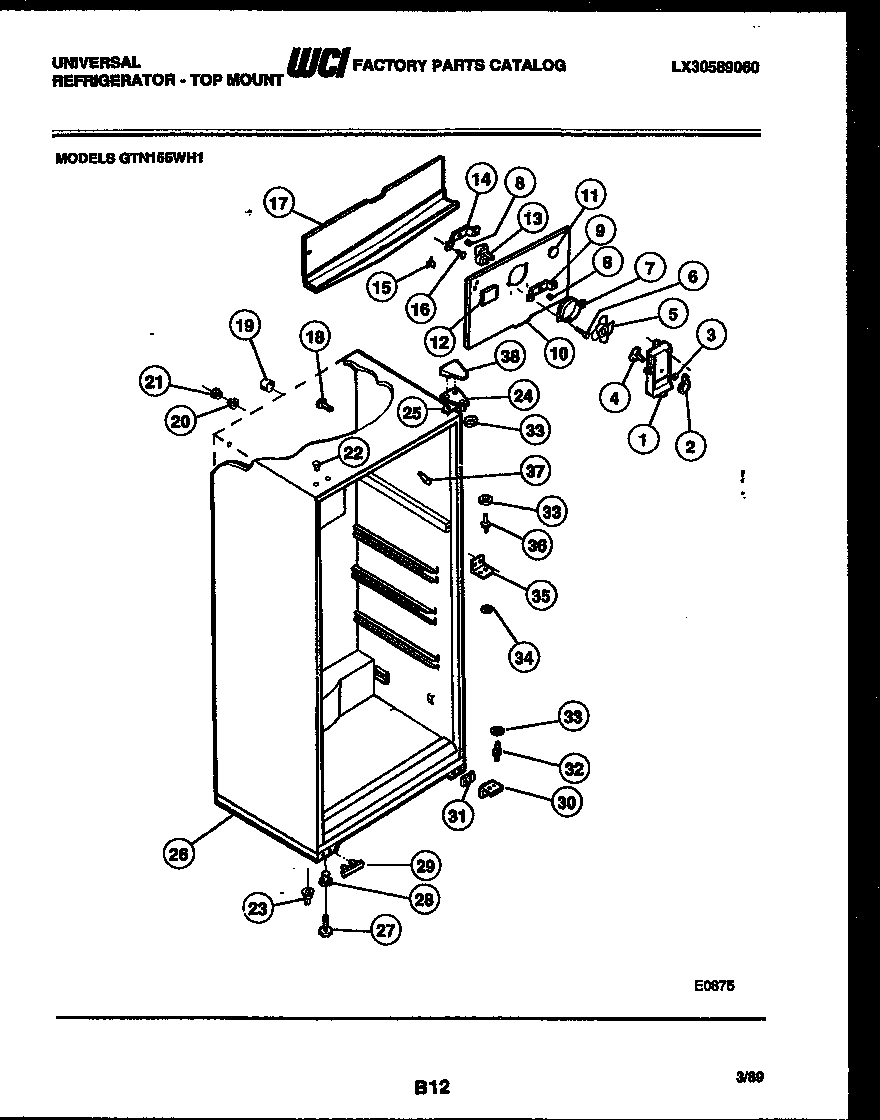

GTN155WHL1 03 – CABINET PARTS

Products

Position	Product
*45262	BUTTON, LINER
1	COVER-FAN
2	WCI G162747-22
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455650 Frigidaire Refrigerator Screw
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	NUT, ORIFICE (2)
10	240396801 Frigidaire Refrigerator Tube Clamp
10	COVER-COIL
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI G162827-05
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-10
22	WCI G174747-09
22	WCI G174747-08
22	WCI G174747–01
22	WCI G174747-11
23	CLIP (4)
24	241710601 Frigidaire Refrigerator Screw
24	BRACKET, TOP HINGE
25	WCI G183861
26	BASE-CABINET
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	BRACKET, HINGE, LOWER
31	SHIM, HINGE
31	TAPPING, PLATE (2)
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	SCREW, BRACKET MOUNTING (4)
35	BRACKET, HINGE CENTER
36	WCI G142220
37	TRIM-CAB CORNER-AVOC
37	TRIM (4)
37	TRIM, WHEAT
37	TRIM CORNER-ALMOND
37	TRIM, COFFEE
38	COVER HINGE, COFFEE
38	COVER HINGE, WHITE
38	COVER HINGE, WHEAT
38	COVER, TOP HINGE, ALMOND
38	COVER, TOP HINGE, AVOCADO
