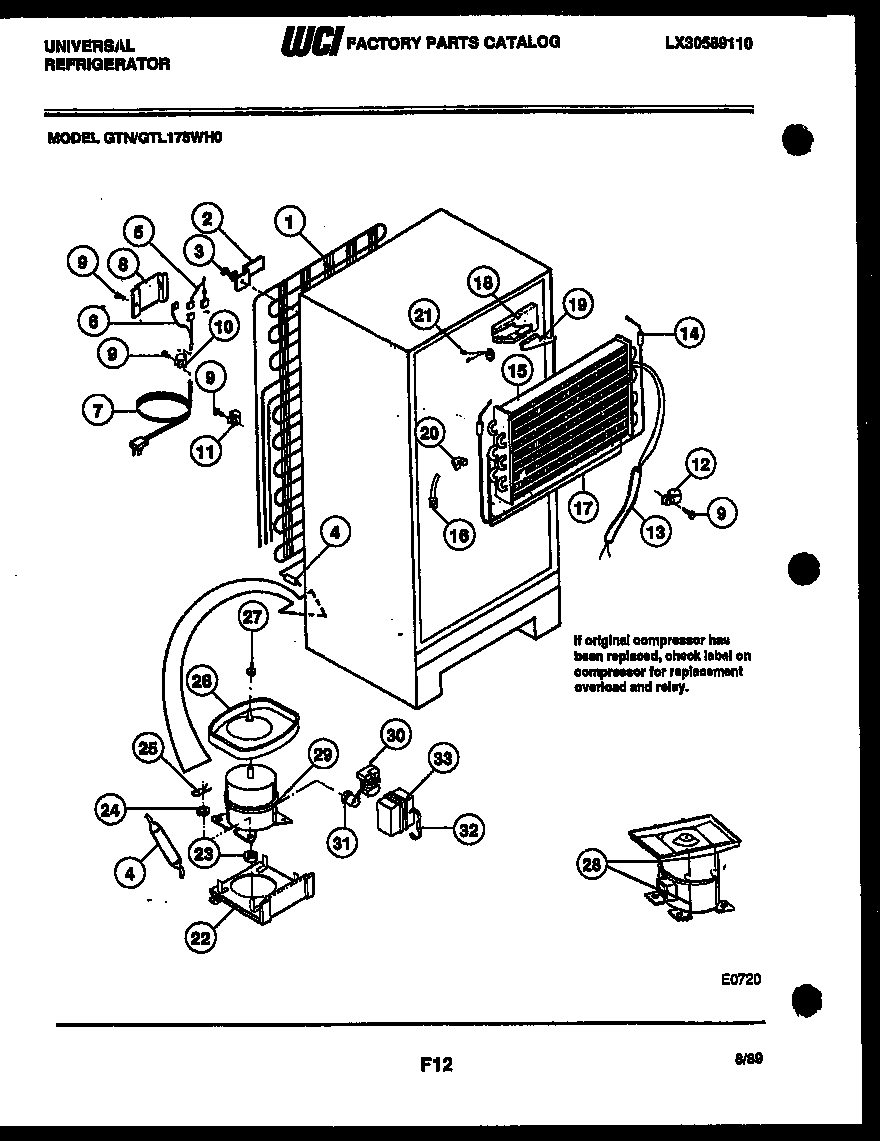

GTN175CH0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*35149	WCI G189437
*35137	HOT TUBE REPAIR KIT
1	WCI G178225
2	BRACKET-CONDENSER MOUNTING (4)
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	HARNESS, WIRING
6	HARNESS-COMPRESSOR
7	CORD, SERVICE
8	WCI G183584
9	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	240396801 Frigidaire Refrigerator Tube Clamp
13	WCI 08000728
14	WCI 08009754
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR
18	BLOCK-EVAPORATOR RH
19	PLUG, EVAPORATOR INSULATION BLOCK, R H
20	BLOCK, LEFT SIDE
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	PLATE
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WCI 08003633
25	CLIP, COMPRESSOR MOUNTING (4)
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26	DEFROST PAN & NUT
27	NUT, LOCK
28	PAN RETAINER KIT-SERVICE
29	COMPRESSOR-SERVICE
30	WCI 3007171
31	WCI 3007416
31A	WCI 3017762
32	5303006412 Frigidaire Refrigerator Cover Mounting Strap
