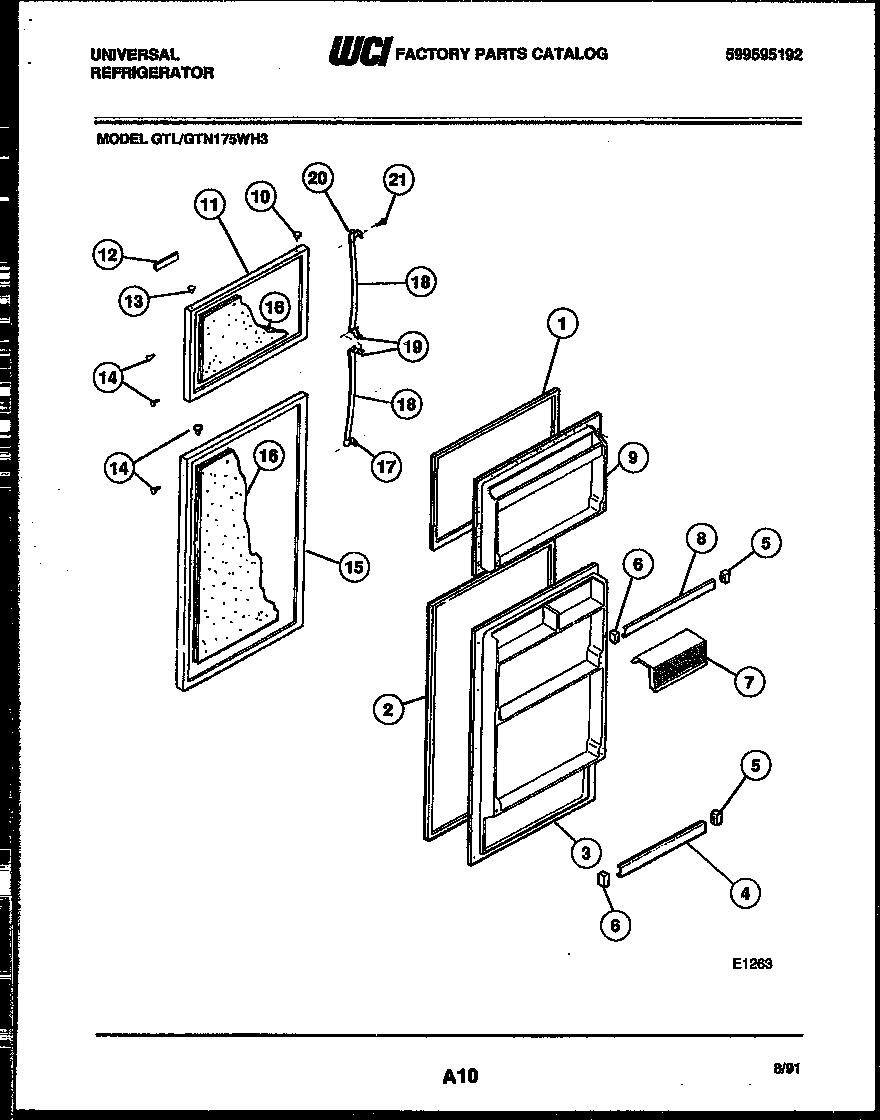

GTN175CH3 02 – DOOR PARTS

GTN175CH3 02 – DOOR PARTS

Written by

in

GTN175CH3 02 – DOOR PARTS

Products

PositionProduct
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3WCI 5303001516
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7WCI 5316177644
8RACK-DOOR
9PANEL-INNER DOOR, FRZR
9A5304455651 Frigidaire Refrigerator Screw
10BUTTON PLUG-COFFEE
11WCI G185599-10
11AWCI 5308000255
12FRAME-NAMEPLATE
13BEARING-HINGE
14BUTTON PLUG-COFFEE
15WCI G185600-10
15ADOOR STOP, REFR SECTION
16INSULATION-BULK (NON-ILLUSTRATED)
17BOTTOM HANDLE END CAP
18WCI 5317049529
19WCI 5303001296
20WCI 5303001297
21WCI 5308011745
