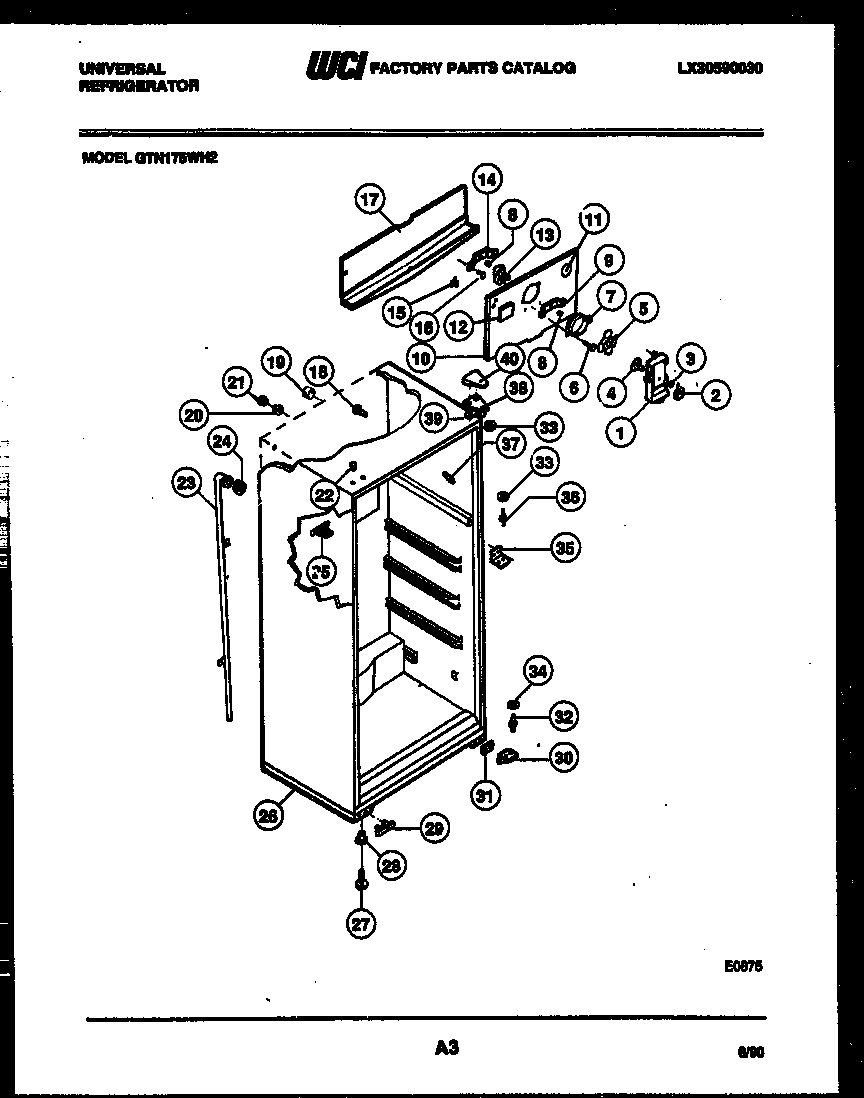

GTN175HH2 01 – CABINET PARTS

GTN175HH2 01 – CABINET PARTS

Written by

in

GTN175HH2 01 – CABINET PARTS

Products

PositionProduct
*33730PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001496
2WCI 5303001333
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10A5304455650 Frigidaire Refrigerator Screw
10WCI 3001527
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11WCI 5303203044
12WCI 3001328
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16218843801 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
22BUTTON-HINGE-AVOCADO
22PLUG, COFFEE
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
22BUTTON-HINGE-WHEAT
23A5304455651 Frigidaire Refrigerator Screw
23WCI 5303001458
24WCI 5303207353
25WCI 5308000056
25AWCI 5303001361
26WCI 08010091
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30HINGE BRACKET – BOTTOM
30A241710601 Frigidaire Refrigerator Screw
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WASHER, .28 X .62 X .19, NYLON
35AWCI 5308012258
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
37TRIM-CABINET CORNER, ALMOND
37WCI 5303202339
37WCI 5303202338
37CORNER
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
40COVER-UPPER HINGE, ALMOND
40WCI 5303001666
40COVER-HINGE-AVOCADO
40COVER – HINGE-WHEAT
40COVER-UPPER HINGE, WHITE
