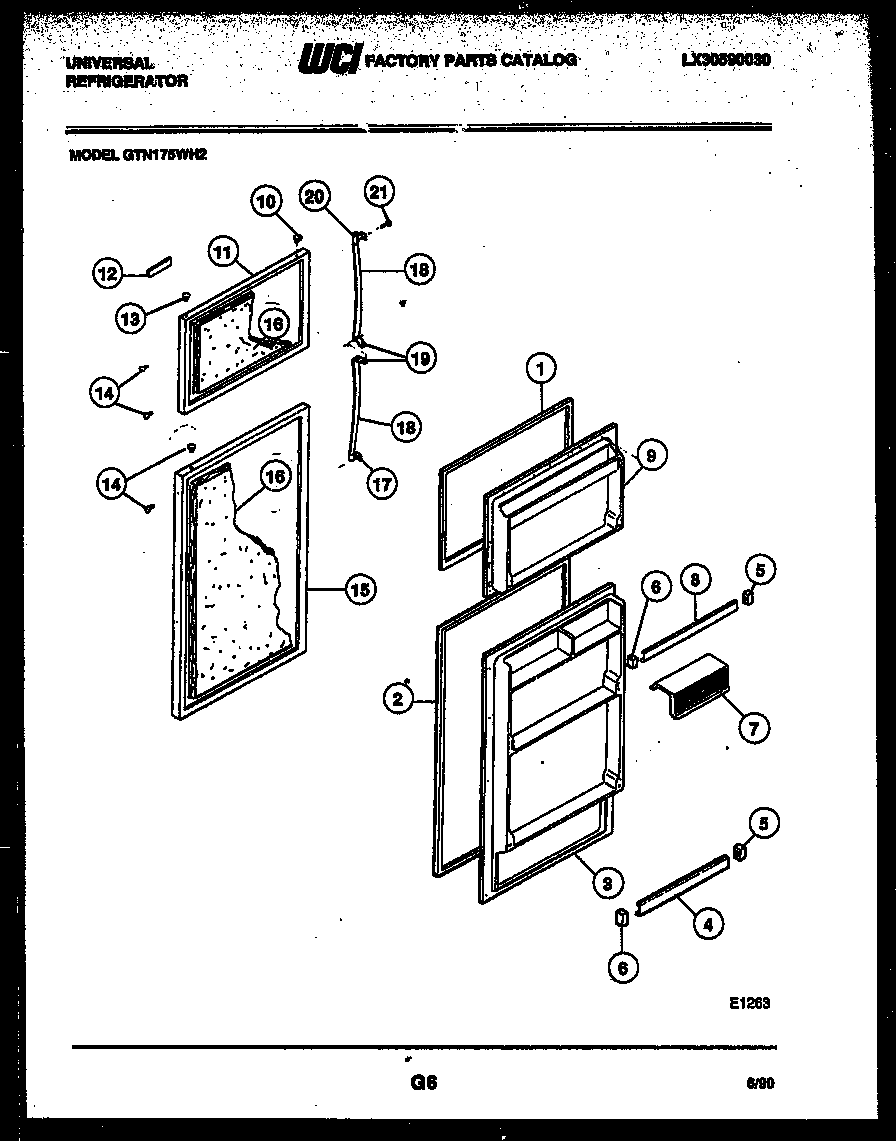

GTN175WH2-32 02 – DOOR PARTS

GTN175WH2-32 02 – DOOR PARTS

Written by

in

GTN175WH2-32 02 – DOOR PARTS

Products

PositionProduct
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3WCI 5303001516
4WCI 3001515
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7WCI 5316177644
8RACK-FRZR DOOR
9WCI 5303001512
9218843801 Frigidaire Refrigerator Screw
10BUTTON-WHEAT
10BUTTON-AVOCADO
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
10BUTTON PLUG-COFFEE
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI G185599-10
11PANEL-FRZR DOOR, WHEAT
11WCI G185599-11
11WCI 5300185599
11WCI 5318559908
12WCI 3001025
13BEARING-HINGE
14240494001 Frigidaire Refrigerator Plug Button
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14BUTTON-WHEAT
14BUTTON-AVOCADO
14BUTTON PLUG-COFFEE
15WCI 5318560008
15WCI G185600-11
15WCI 5300185600
15WCI 5308000255
15WCI G185600-10
15PANEL-REFR DOOR, WHEAT
16INSULATION-BULK (NON-ILLUSTRATED)
17BOTTOM HANDLE END CAP
18WCI 5317049529
19WCI 5303001296
20WCI 5303001297
21WCI 5308011745
