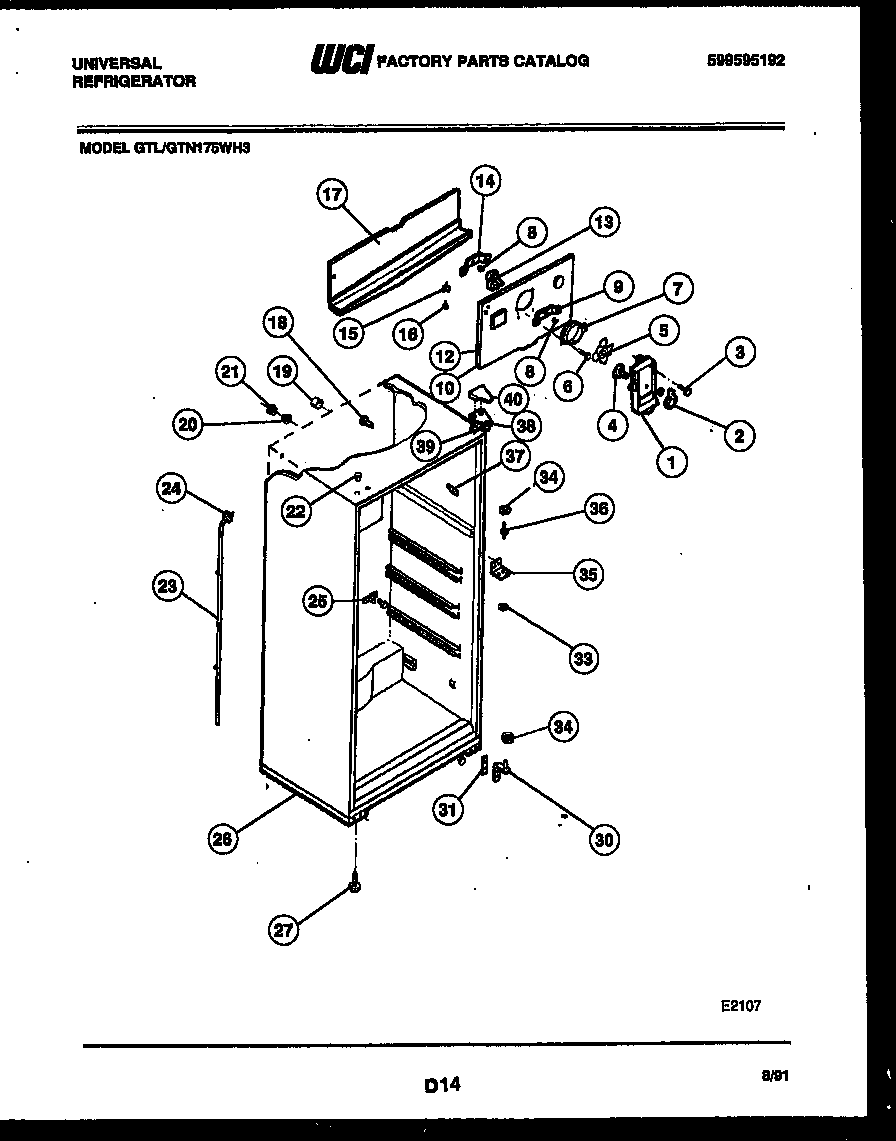

GTN175WH3-57 03 – CABINET PARTS

Products

PositionProduct
*52962PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001496
2WCI 5303001333
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
65304455651 Frigidaire Refrigerator Screw
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
105304455650 Frigidaire Refrigerator Screw
10WCI 3001527
10NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
105303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16218843801 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG, COFFEE
22BUTTON-HINGE-AVOCADO
22PLUG-BUTTON, WHITE
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
22BUTTON-HINGE-WHEAT
23WCI 5303210377
24WCI 5303207353
25WCI 5303001361
25WCI 5308000056
26BASE-CABINET
27Screw-leveling,(2)
30BRACKET-LOWER HINGE, W/ HINGE PIN
30TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
31WCI 5303212488
33WASHER, .34 X .62 X .05, NYLON
34WCI 5308000186
35241710601 Frigidaire Refrigerator Screw
35BRACKET-CTR HINGE
36WCI 5308000184
37CORNER
37WCI 5303202338
37WCI 5303202339
37TRIM-CABINET CORNER, WHITE
37TRIM-CABINET CORNER, ALMOND
38BRACKET-UPPER HINGE
38TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
40WCI 5303001666
40COVER-UPPER HINGE, ALMOND
40COVER-HINGE-AVOCADO
40COVER – HINGE-WHEAT
40COVER-UPPER HINGE, WHITE
