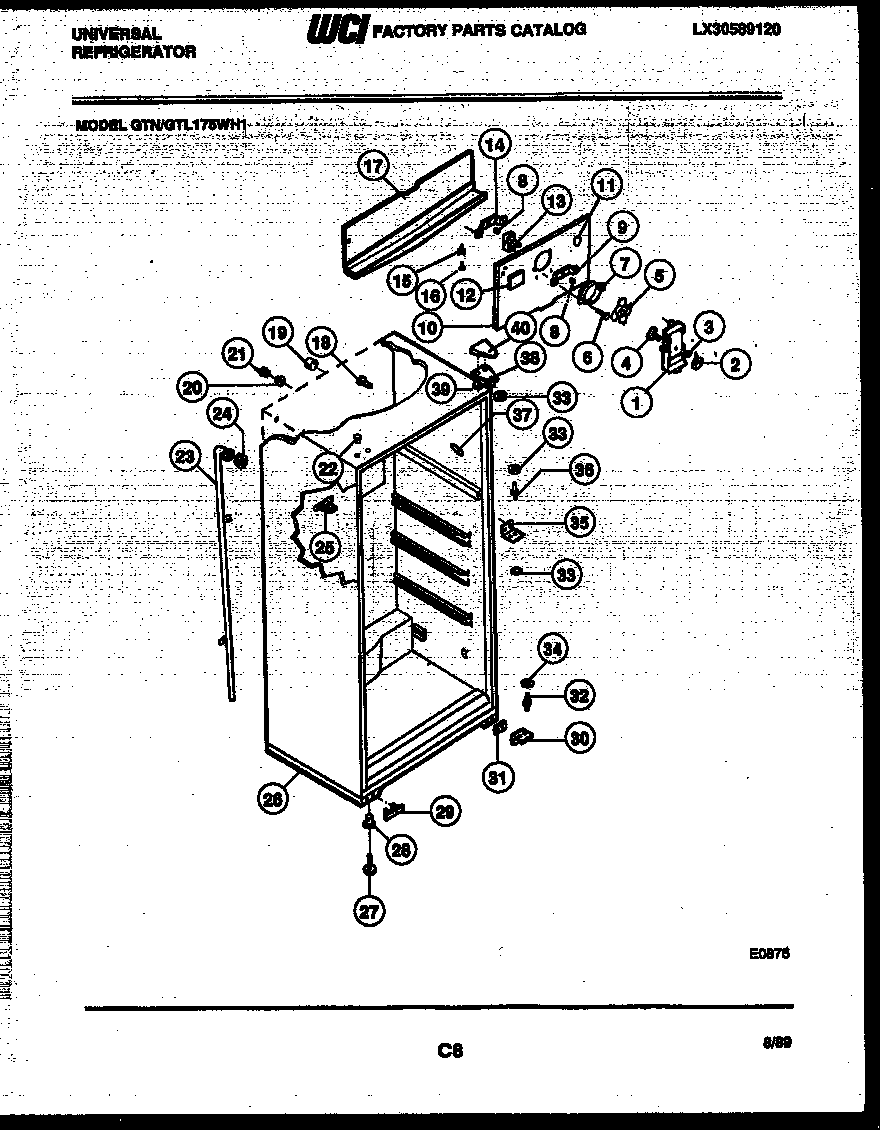

GTN175WHH1 03 – CABINET PARTS

Products

Position	Product
*48038	BUTTON, LINER
1	WCI 3001496
2	WCI G162747-21
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	WCI 3001527
10	5304455650 Frigidaire Refrigerator Screw
10	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	218843801 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-09
22	WCI G174747-10
22	WCI G174747-08
22	WCI G174747–01
22	WCI G174747-11
23	WCI 3001458
23	5304455649 Frigidaire Refrigerator Screw
23	5304455651 Frigidaire Refrigerator Screw
24	RING, SEAL (NON-ILLUSTRATED)
25	SPOUT DRAIN TUBE
25	PIN-PUSH
26	WCI 08010091
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	HINGE-BRACKET-BOTTOM
31	SHIM, HINGE
31	TAPPING, PLATE (2)
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	SCREW, BRACKET MOUNTING (4)
35	BRACKET, HINGE CENTER
36	WCI G142220
37	WCI 3202338
37	WCI 3202339
37	WCI 3202336
37	CORNER TRIM-AVOCADO
37	WCI 3202340
38	TAPPING PLATE (2)
38	241710601 Frigidaire Refrigerator Screw
38	BRACKET, TOP HINGE
39	WCI G183861
40	COVER, TOP HINGE, ALMOND
40	COVER, TOP HINGE, AVOCADO
40	COVER HINGE, WHITE
40	COVER HINGE, WHEAT
40	COVER HINGE, COFFEE
