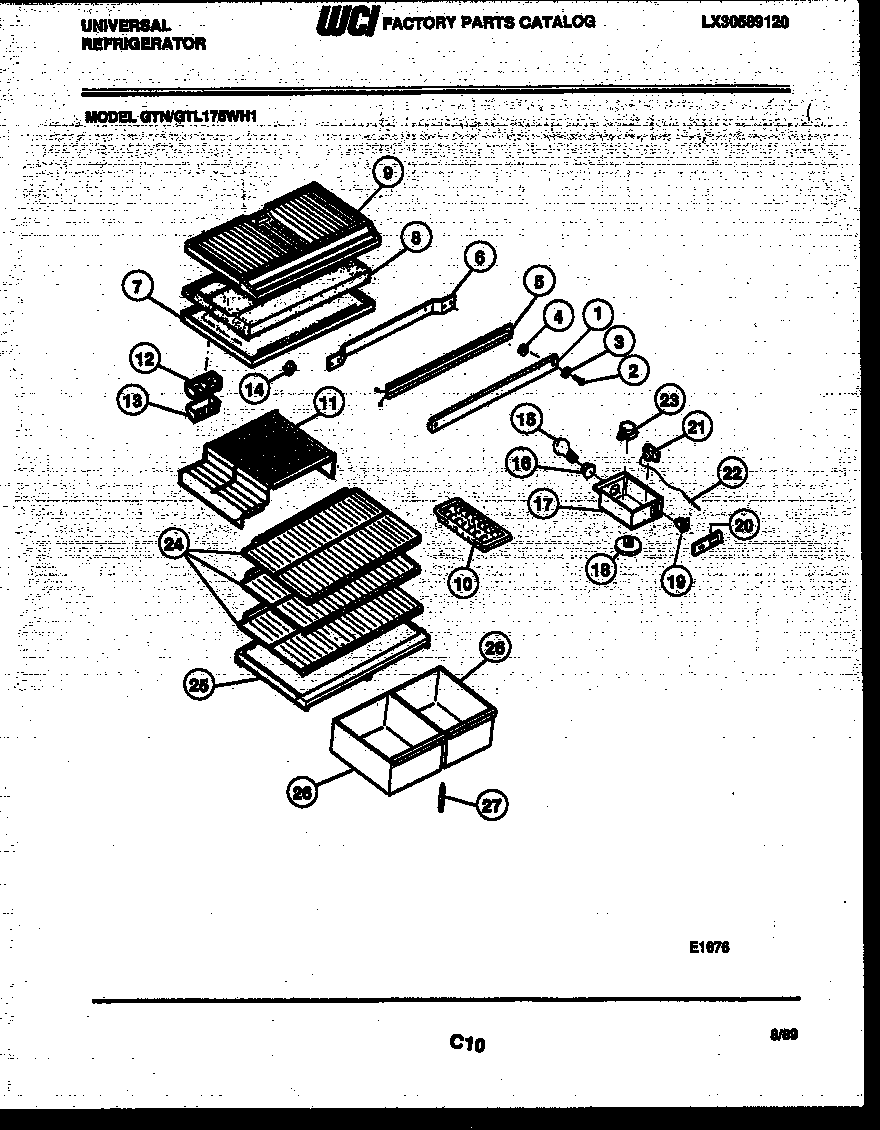

GTN175WHV1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3916133
1WCI 3200465
1WCI 3916134
1WCI 3916135
1WCI 3916132
2SCREW, BRACKET MOUNTING (4)
3WASHER (2)
4SPACER (NON-ILLUSTRATED)
5WCI 08017408
6CLAMP, MULLION MOUNTING
7SCREW (5)
7TOP-REFRIGERATOR
8HARNESS, WIRING
8DIVIDER, CENTER
9BTM, FZR.
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “STEP“
12DEFLECTOR AIR
13WCI G162178
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET LIGHT
17CONTROL BOX
175304455650 Frigidaire Refrigerator Screw
18WCI 3001335
19SWITCH SLIDE
20WCI 3001339
21WCI 3200810
21WCI G107080
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI G178511-03
25WCI 3001523
26PAN, CRISPER
27SUPPORT, CRISPER COVER
