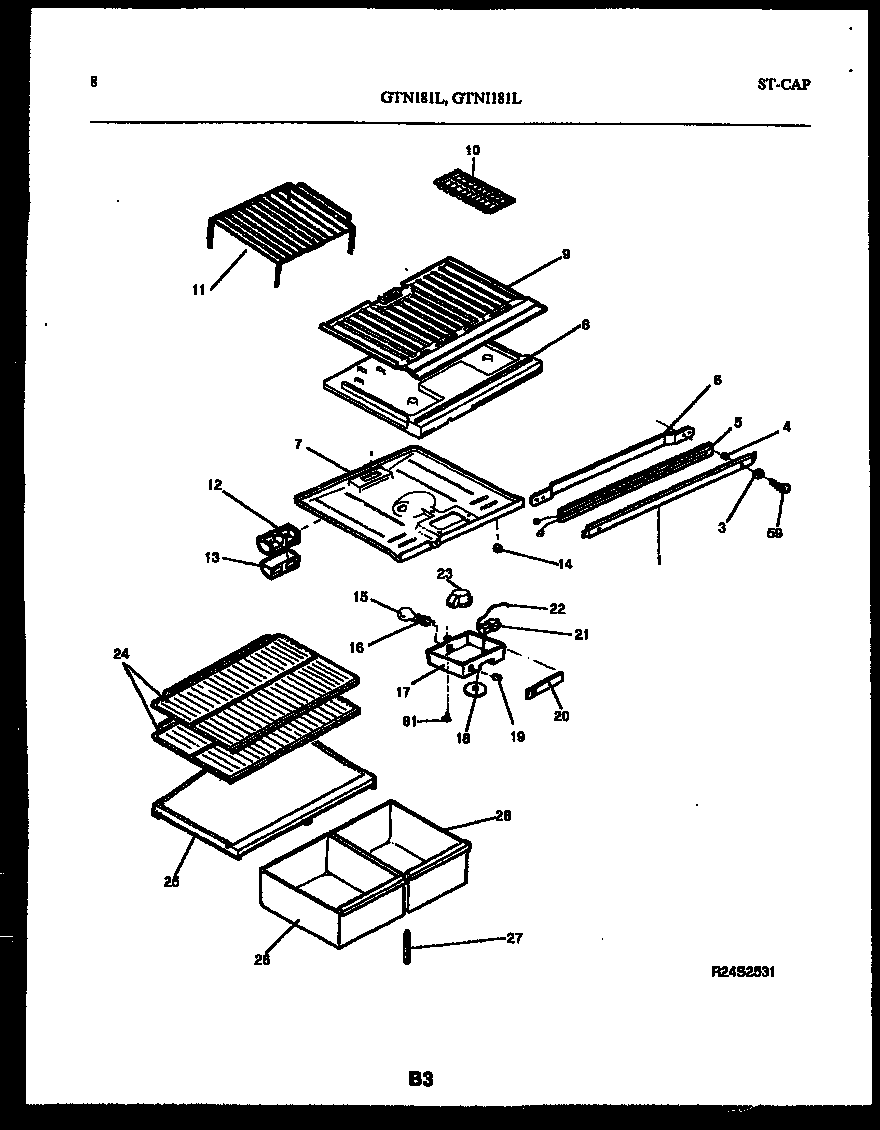

GTN181WLO 05 – SHELVES AND SUPPORTS

GTN181WLO 05 – SHELVES AND SUPPORTS

Written by

in

GTN181WLO 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 5303001380
7TOP PANEL-REFR, W/SNAP BUSHING
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
8DIVIDER, STYROFOAM
8HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
115303282284 Frigidaire Wire Shelf
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17WCI 08016567
18WCI 5308010011
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215263000
21WCI 5303200810
21WCI 5303001260
