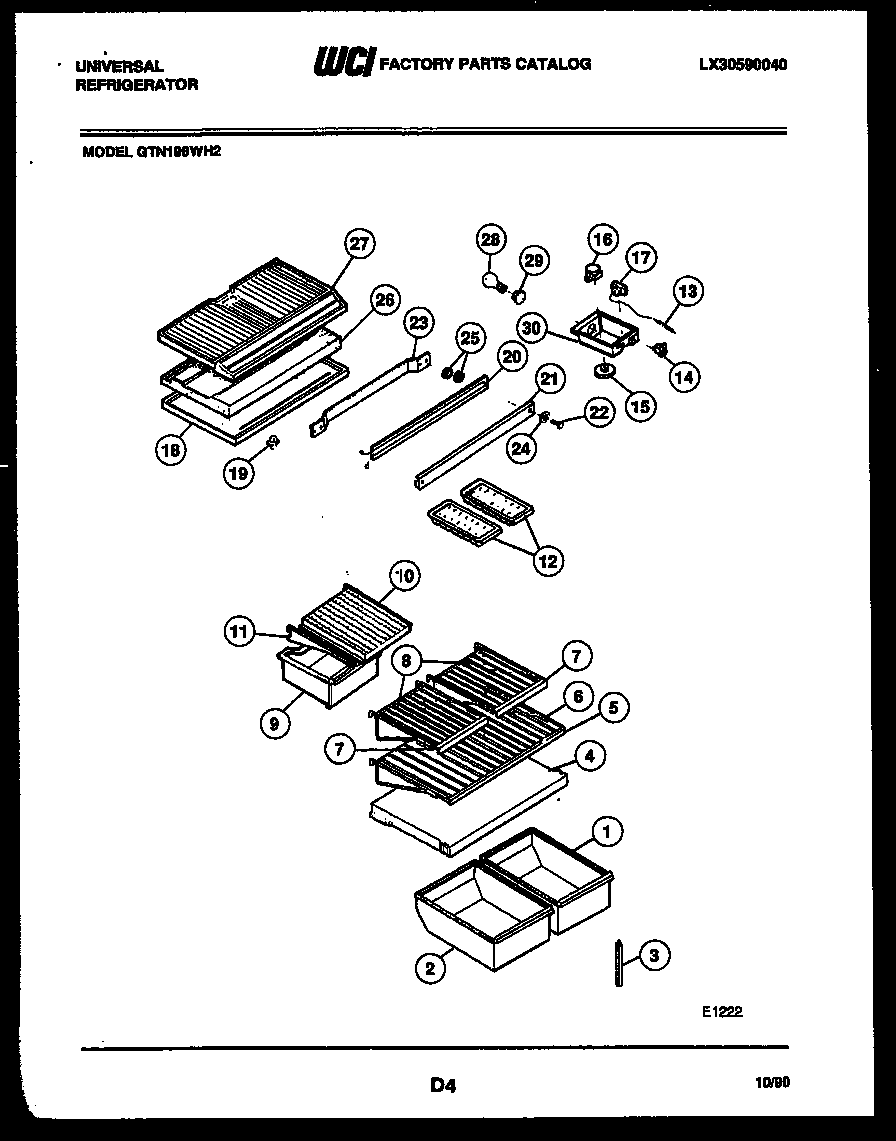

GTN198AH2 04 – SHELVES AND SUPPORTS

GTN198AH2 04 – SHELVES AND SUPPORTS

Written by

in

GTN198AH2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*36592LABEL-CONTROL BOX
1PAN-CRISPER, RH
2PAN-CRISPER, LH
3SUPPORT-CRISPER CVR, ADJUSTABLE
4WCI 5303001493
5WCI 5303211249
6SHELF-FULL, CANTILEVR, REFR
7WCI 5303211253
8SHELF-HALF, CANTILEVR, REFR, (3)
9WCI 5303015407
10WCI 5318719501
11RAIL-OFFSET LS
11ARAIL-STRAIGHT RS (NON-ILLUSTRATED)
12215667501 Frigidaire Refrigerator Ice Tray Primary
13TUBE
14SWITCH-ENERGY SAVER, SLIDE TYPE
15KNOB-CONTROL
16AWCI 5303001260
16WCI 5303200810
17215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17A5304455649 Frigidaire Refrigerator Screw
18TOP PANEL-REFR, W/SNAP BUSHING
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 5303210351
21WCI 5303200367
22WCI 5308012258
23WCI 5308010008
24WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
25SPACER-MULLION MTG, STEEL
26AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
26DIVIDER, STYROFOAM
27WCI 5303001505
28316538904 Frigidaire Oven Lamp Light
29SOCKET-LIGHT/LAMP
30CONTROL BOX
