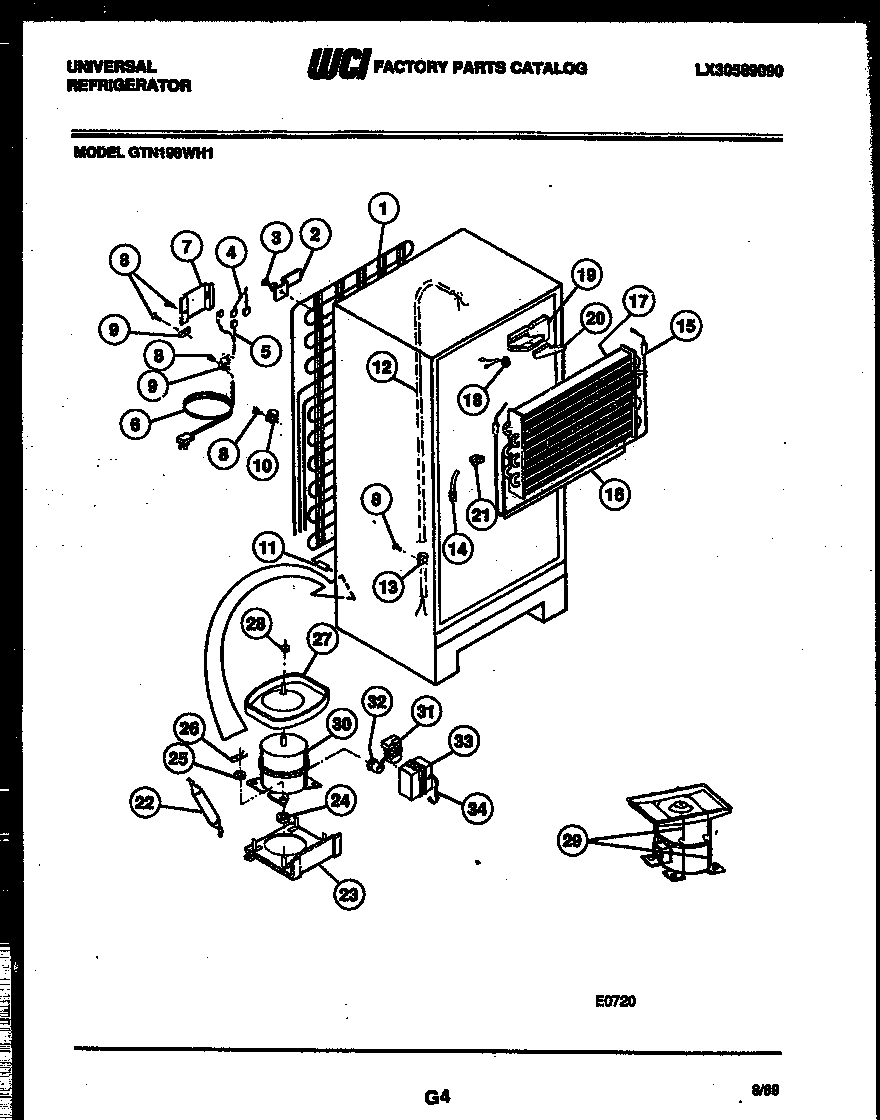

GTN198WH1-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

GTN198WH1-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GTN198WH1-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*47521HOT TUBE REPAIR KIT
1WCI G163133
2WCI 08000296
3WASHER
35308000039 Frigidaire Refrigerator Screw
4HARNESS, WIRING
5HARNESS-COMPRESSOR
6CORD, SERVICE
7WCI G183584
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303017691 Frigidaire Refrigerator Spacer-Tube
12WCI 08000728
13240396801 Frigidaire Refrigerator Tube Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
155317842502 Frigidaire Defrost Heater
16INSULATOR
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
21BLOCK, LEFT SIDE
225303305677 Frigidaire Replacement Filter Dryer Filters
23PLATE
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 08003633
26CLIP, COMPRESSOR MOUNTING (4)
27DEFROST PAN & NUT
27DEFROST PAN-ORIGINAL COMPRESSOR
275303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28NUT, LOCK
29PAN RETAINER KIT-SERVICE
30COMPRESSOR WITH ELECTRICALS
31RELAY-ORIGINAL
32WCI 3201563
33WCI 08016583
34STRAP-BALE
