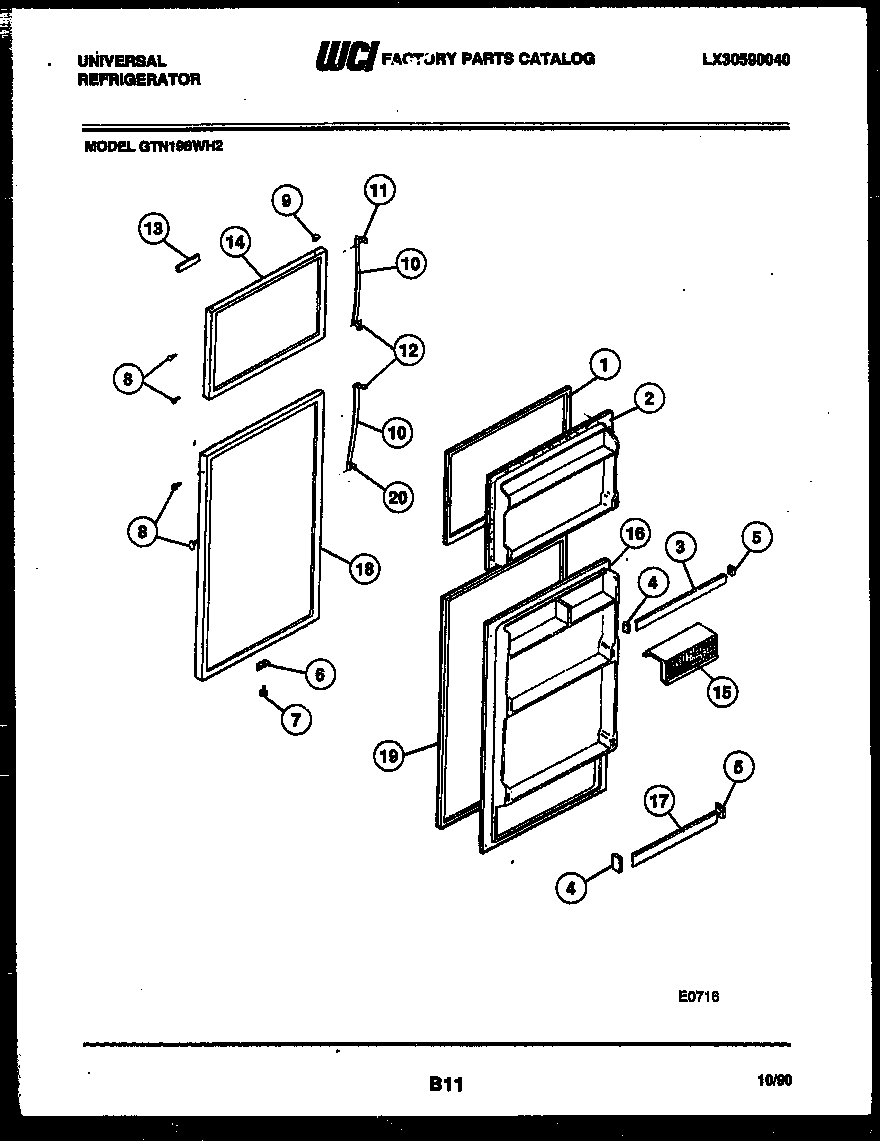

GTN198WHD2 02 – DOOR PARTS

GTN198WHD2 02 – DOOR PARTS

Written by

in

GTN198WHD2 02 – DOOR PARTS

Products

PositionProduct
*40237INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2PANEL-INNER DOOR, FRZR
3WCI 5303001484
4SUPPORT-DOOR RACK, LH
5SUPPORT-DOOR RACK, RH
6WCI 5308000255
8BUTTON-AVOCADO
8240494001 Frigidaire Refrigerator Plug Button
8BUTTON-WHEAT
8BUTTON PLUG-COFFEE
8PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9BUTTON PLUG-COFFEE
9PLUG-BUTTON, WHITE, HINGE BRG HOLE
9BUTTON-AVOCADO
9BUTTON-WHEAT
9PLUG-BUTTON, ALMOND, HINGE BRG HOLE
10WCI 5317049529
11WCI 5303001297
12WCI 5303001296
12WCI 5308011745
13WCI 3001025
14WCI G178690-10
14PANEL-FRZR-OUTER-WHITE
14PANEL-FRZR-OUTER-AVOCADO
14PANEL-FRZR-OUTER-WHEAT
14PANEL-FRZR-OUTER-ALMOND
15DOOR-DAIRY
16218843801 Frigidaire Refrigerator Screw
16WCI 5318539701
17WCI 5303001418
18BEARING-HINGE
18WCI 5317869408
18WCI 5317869411
18PANEL-OUTER-COFFEE
18WCI 5317869409
18WCI 5303916797
19GASKET-REFRIG DOOR
20BOTTOM HANDLE END CAP
