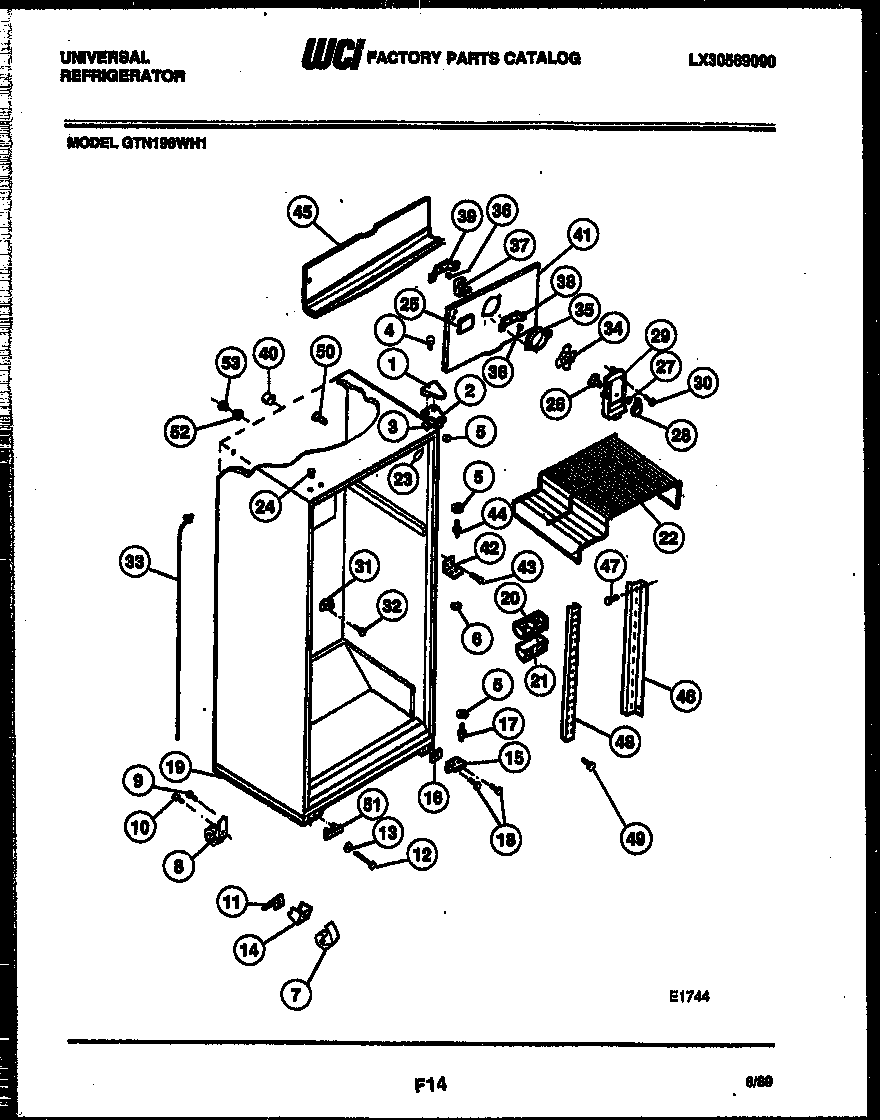

GTN198WHJ1 03 – CABINET PARTS

Products

Position	Product
*47511	BUTTON, LINER
1	COVER HINGE, WHEAT
2	BRACKET, TOP HINGE
2A	TAPPING PLATE (2)
3	WCI G183861
4	241710601 Frigidaire Refrigerator Screw
5	WCI G103903
6	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
7	ROLLER FRONT, ADJUSTABLE (2)
8B	NUT, ANCHOR (2)
8	ROLLER, REAR (2)
8A	LEG-LEVELING (2)
9	5304455651 Frigidaire Refrigerator Screw
10	BOLT ROLLER (2)
11	SPRING-ROLLER (2)
12	BOLT-ROLLER (2)
13	WASHER
14	SUPPORT, ROLLER (2)
15	HINGE-BRACKET-BOTTOM
16	SHIM, HINGE
17	5303001321 Frigidaire Refrigerator Lower Hinge Pin
19	WCI 08010092
20	DEFLECTOR AIR
21	WCI G162178
22	SHELF-FREEZER STEP
23	WCI 3202338
24	WCI G174747-09
25	WCI 3001328
26	DAMPER FAN COVER
27	NUT, DAMPER MOUNTING
28	WCI 3001333
29	WCI 3001496
31	SPOUT DRAIN TUBE
32	PIN PUSH SPOUT (2)
33	WCI 3001458
33A	RING, SEAL (NON-ILLUSTRATED)
34	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
35	WCI 08000124
36	G187559 Frigidaire Refrigerator Bushing
37	5300158289 Frigidaire Evaporator Fan Motor
38	WCI G185302
39	WCI G185303
39B	218843801 Frigidaire Refrigerator Screw
39A	BRACKET-CONNECTOR
40	TUBE, INSULATION (2)
41A	5304455650 Frigidaire Refrigerator Screw
41	WCI G177529
41B	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
41C	NUT, ORIFICE (2)
42	BRACKET, HINGE CENTER
43	SCREW, BRACKET MOUNTING (4)
44	WCI G142220
45	WCI G177534
46	WCI 08000302
47	5304455852 Frigidaire Refrigerator Screw
48	WCI G189341
49	SCREW (3) (NON-ILLUSTRATED)
50	WCI G163669
51	WCI G166912
52	WCI G174733
53	WCI G174734
