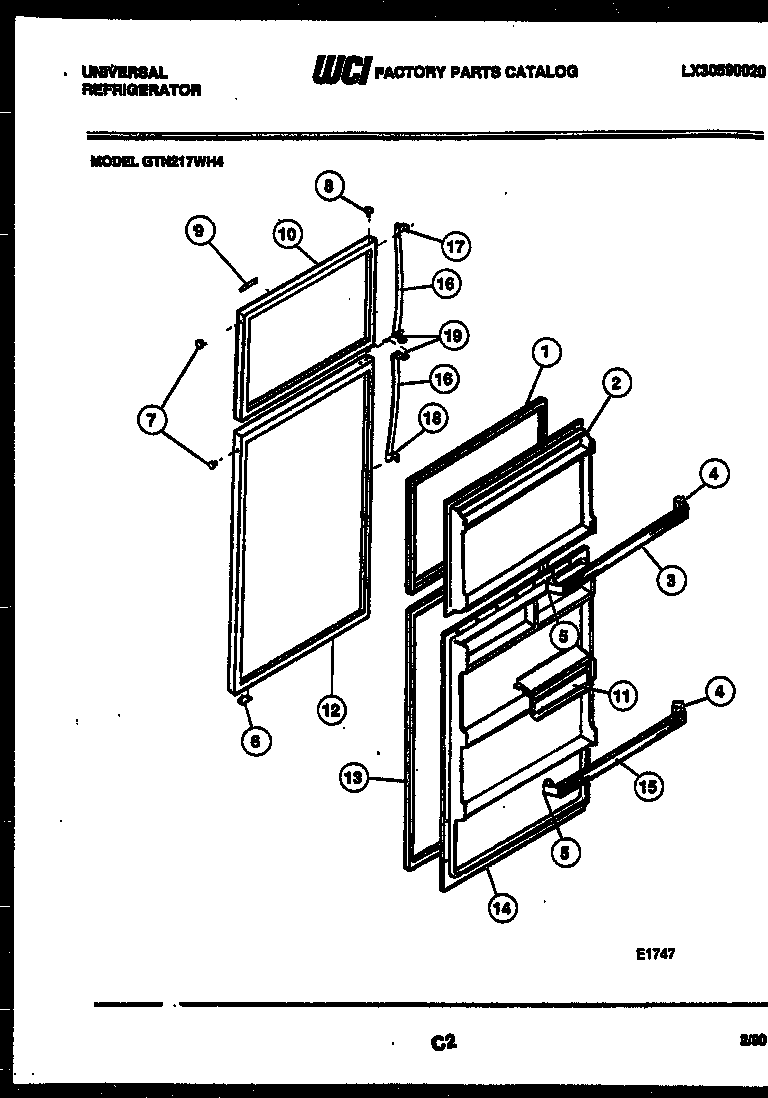

GTN217BH4 02 – DOOR PARTS

GTN217BH4 02 – DOOR PARTS

Written by

in

GTN217BH4 02 – DOOR PARTS

Products

PositionProduct
*26733INSULATION-BULK (NON-ILLUSTRATED)
1GASKET-FRZR
2PANEL-INNER
3WCI 3001409
4SUPPORT-DOOR RACK, RH
5SUPPORT-DOOR RACK, LH
6WCI 5308000255
6AWCI 5308011745
7PLUG-BUTTON, ALMOND, HANDLE/DR STOP
8PLUG-BUTTON, ALMOND, HINGE BRG HOLE
9FRAME-NAMEPLATE
10FREEZER DOOR-ALMOND
11DOOR-DAIRY
12WCI 5317869411
12ABEARING-HINGE
13GASKET-REFRIG DOOR
14PANEL-INNER
14A218843801 Frigidaire Refrigerator Screw
15ARACK-REFR DOOR-BOTTOM (NON-ILLUSTRATED)
15WCI 5303001418
16WCI 5317049529
17WCI 5303001297
18WCI 5300179801
19WCI 5303001296
