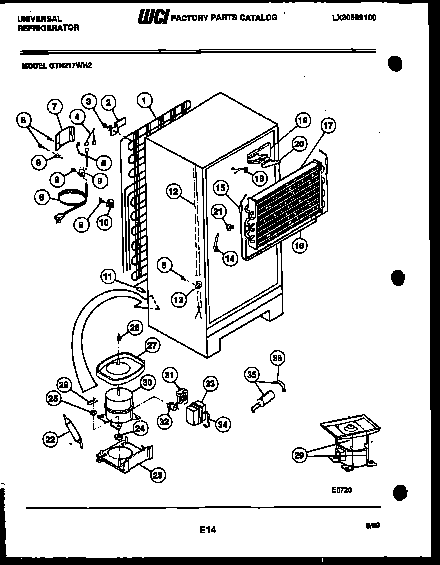

GTN217CH2 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*44048	HOT TUBE REPAIR KIT
1	WCI G163133
2	WCI 08000296
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS-DIVIDER (NON-ILLUSTRATED)
5	HARNESS-COMPRESSOR
6	CORD, SERVICE
7	WCI G183584
8	5304455651 Frigidaire Refrigerator Screw
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	5303017691 Frigidaire Refrigerator Spacer-Tube
12	WCI 08000728
13	240396801 Frigidaire Refrigerator Tube Clamp
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	5317842502 Frigidaire Defrost Heater
16	INSULATOR
17	EVAPORATOR
18	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	BLOCK, LEFT SIDE
22	5303305677 Frigidaire Replacement Filter Dryer Filters
23	PLATE
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 08003633
26	CLIP, COMPRESSOR MOUNTING (4)
27A	DEFROST PAN & NUT
27	DEFROST PAN-ORIGINAL COMPRESSOR
27B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28	NUT, LOCK
29	PAN RETAINER KIT-SERVICE
30	WCI 3916004
31	WCI 3007173
32A	WCI 3202891
32	WCI 3202863
33	WCI 08016583
34	STRAP-BALE
35	CAPACITOR-RUN
36	WCI 3001391
