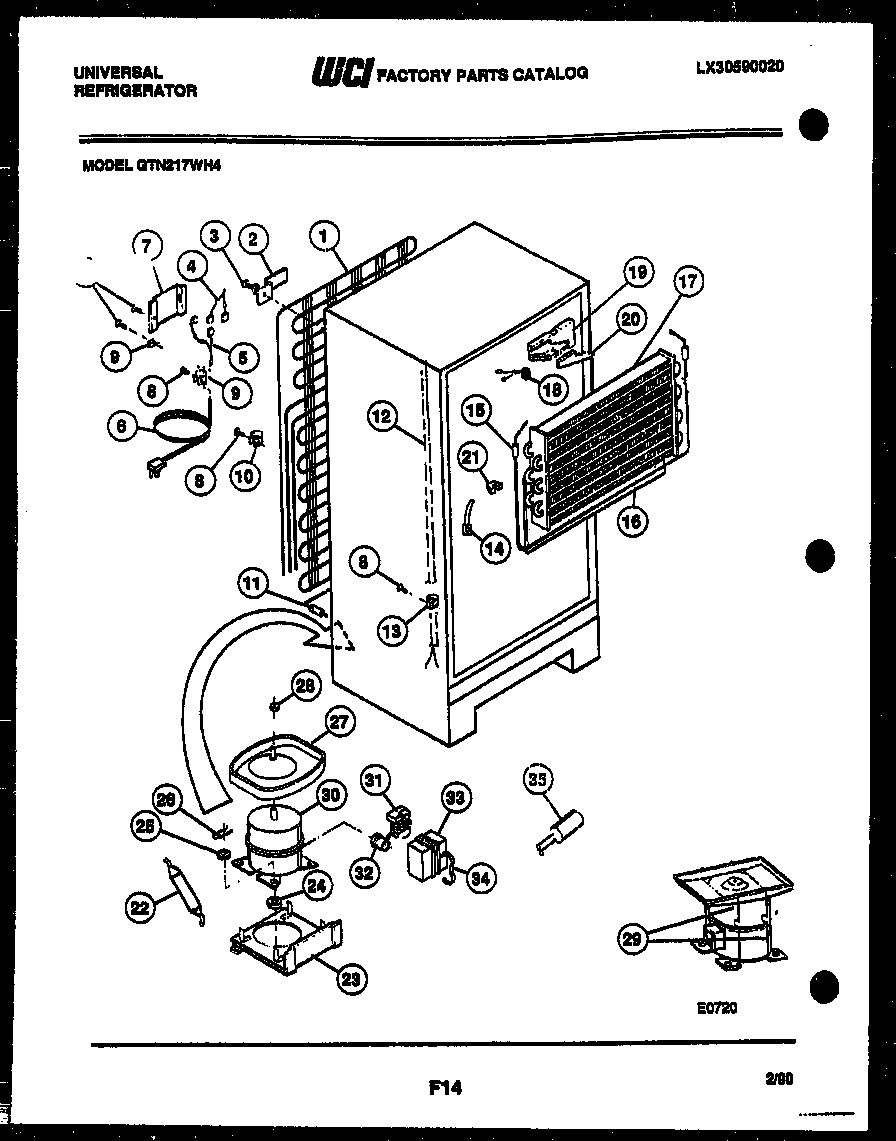

GTN217WHF4 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*36442	HOT TUBE REPAIR KIT-SERVICE
1	WCI 5300163133
2	BRACKET, MOUNTIN, CONDENSER, (4)
3	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS-DIVIDER (NON-ILLUSTRATED)
5	WIRING HARNESS, COMPRESSOR,
6	CORD-ELECTRIC POWER
7	WCI 5303001197
8	5304455651 Frigidaire Refrigerator Screw
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	5303017691 Frigidaire Refrigerator Spacer-Tube
12	WCI 5308000728
13	5308000133 Frigidaire Refrigerator Clamp
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	5317842502 Frigidaire Defrost Heater
16	INSULATOR-EVAP
17	WCI 5300162506
18	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19	INSULATION BLOCK, RH
20	INSULATION PLUG, RH
21	INSULATION BLOCK, LH
22	5303305677 Frigidaire Replacement Filter Dryer Filters
23	WCI 5308013663
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WASHER-COMPR MTG
26	CLIP – COMPRESSOR MTG
27	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	PAN-DEFROST-ORIG COMPRESSOR
27	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
28	Nut,lock `1/4-20 ,drain pan mtg
29	PAN RETAINER KIT, SERVICE
30	WCI 3916012
31	RELAY-TL
32	WCI 3202891
32	WCI 3202863
33	WCI 08016583
34	STRAP-BALE
35	CAPACITOR
